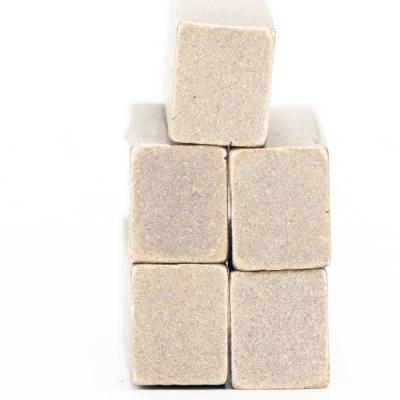

Diamond Blade Segments - Diamond Segments Manufacturer

Product Features:

1:The segments are attached to the core by brazing with silver solder and fixed on circular blades, gang saws and circular multi-blade cutters; 2:High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
1:The segments are attached to the core by brazing with silver solder and fixed on circular blades, gang saws and circular multi-blade cutters;
2:High-quality Diamond Segment Made from High-grade Diamond by Special and Advanced Techniques;
3:Segment for diameter 25mm to 3000mm blade;
4:Specifications supplied by customers are available;
5:High cutting efficiency and long life;

Segment can be produced for cutting granite, marble, sandstone, limestone, andesine, asphalt, tile, concrete and others. Our diamond segments are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.

Diameter(mm)

Blade thickness
(mm)

Segment Spec. (mm)

Segment Number
Φ350 2.2 40 * 3.2(3.4) * 10(15)(20) 24
2.4 40 * 3.2(3.4) * 10(15)(20)
Φ400 2.6 40 * 3.6(3.8) * 10(15)(20) 28
2.8 40 * 3.8(4.0) * 10(15)(20)
Φ450 3.0 40 * 4.0(4.2) * 10(15)(20) 32
3.2 40 * 4.2(4.4) * 10(15)(20)
Φ500 3.2 40 * 4.2(4.4) * 10(15)(20) 36
3.4 40 * 4.4(4.6) * 10(15)(20)
Φ550 3.4 40 * 4.4(4.6) * 10(15)(20) 38
3.6 40 * 4.6(4.8) * 10(15)(20)
Φ600 3.6 40 * 4.6(4.8) * 10(15)(20) 42
3.8 40 * 4.8(5.0) * 10(15)(20)
Φ700 4.0 40 * 5.0(5.2) * 10(15)(20) 50
4.2 40 * 5.2(5.4) * 10(15)(20)
Φ800 4.5 40 * 5.5(5.7) * 10(15)(20) 57
4.8 40 * 5.8(6.0) * 10(15)(20)
Diameter(mm) Steel core(mm) Head size(mm) No. Shape Application
900 5.0 24×7.0/6.2×13(15,20) 64 Z3T/Z3T-M (conical) Granite
1000 5.0 24×7.0/6.2×13(15,20) 70 Z3T/Z3T-M (conical) Granite
1200 5.5 24×7.4/6.6×13(15,20) 80 Z3TZ3T-M (conical) Granite
1400 6.0 24×8.0/7.2×13(15,20) 92 Z3T/Z3T-M (conical) Granite
1400 6.5 24×8.4/7.6×13(15,20) 92 Z3T/Z3T-M (conical) Granite
1600 7.2 24×9.2/8.4×13(15,20) 108 Z3T/Z3T-M (conical) Granite
1800 7.5 24×10/9.2×13(15,20) 120 Z3T/Z3T-M (conical) Granite
2000 8.0 24×11/10×15(20) 128 Z3T/Z3T-M (conical) Granite
2200 9.0 24×11/10×15(20) 132 Z3T/Z3T-M (conical) Granite
2500 9.0 24×12/11×20(30) 140 Z3T/Z3T-M (conical) Granite
2700 9.0 24×12/11×20(30) 140 Z3T/Z3T-M (conical) Granite
3000 9.3 24×13/12×20(30) 160 Z3T/Z3T-M (conical) Granite
3500 9.5 24×13.5/12.5×20(30) 180 Z3T/Z3T-M (conical) Granite
Other specifications are available upon request.
