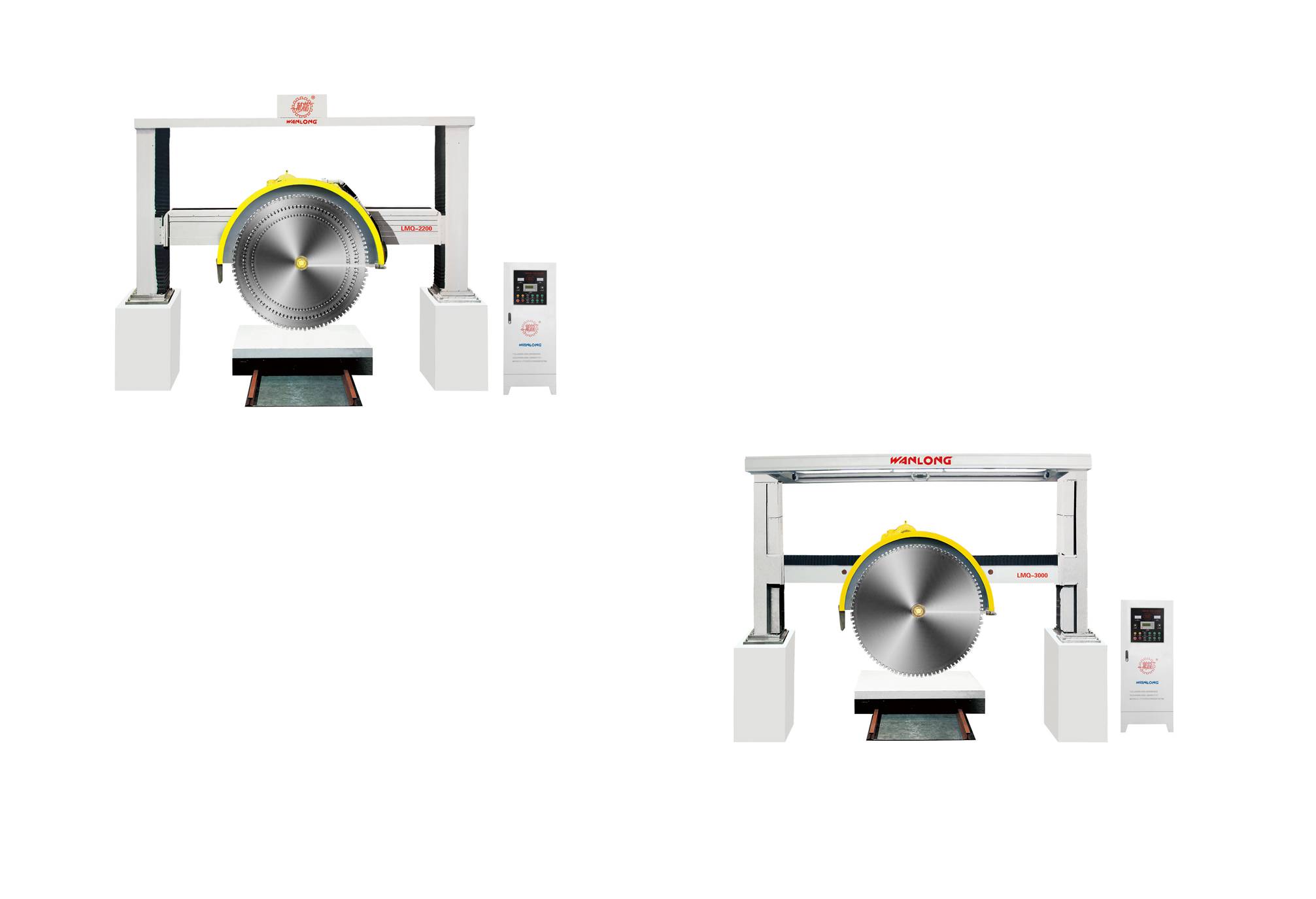

LMQ-2200/2500/3000 Gantry Cutting Machine

Product Features:

The elevation of blade is driven by crossbeam to increase the cutting flatness and processing scope Sliding speed of blade on the crossbeam is adjustable

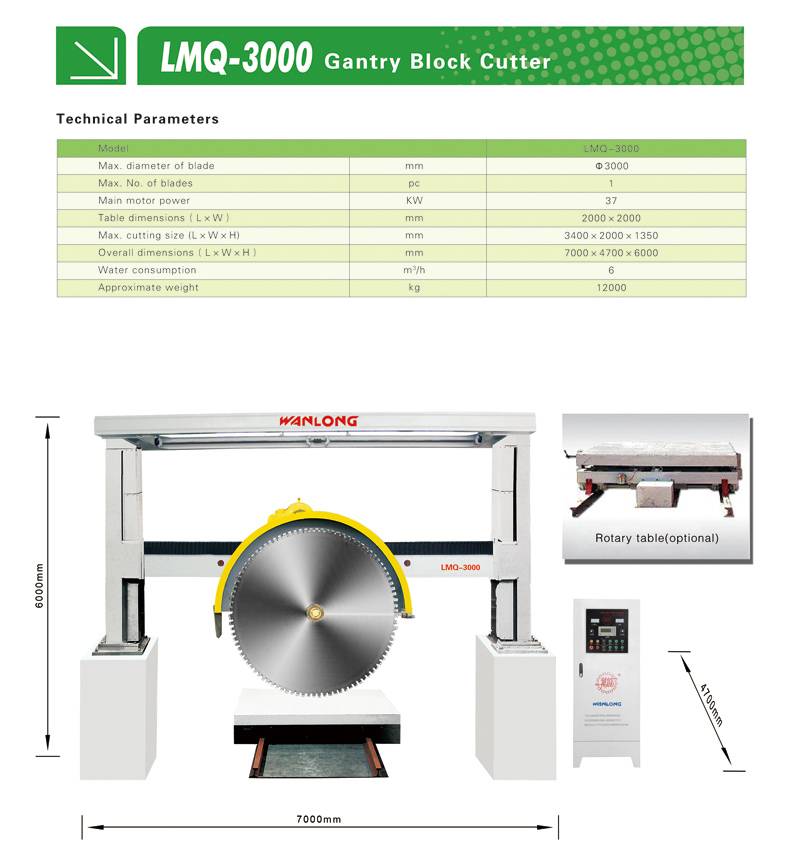

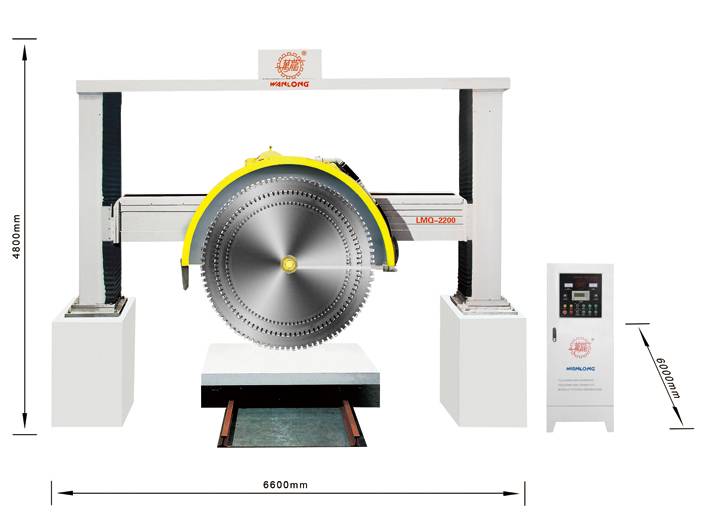

    LMQ-2200 LMQ-2500 LMQ-3000
Max. diameter of blade mm 2200 2500 3000
Max. No. of blades pc 3 1 1
Recommended Blade Combination mm 2200 1600  940 2500 3000

Recommend saw blade thickness

mm 6.5 8 8.0
Main motor power KW 30 30 37
Table dimensions ( L x W ) mm 2000*2000 2000*2000 2000*2000
Max. cutting size (L x W x H) mm 3200*2000*950 3000*2000*1100 2500*2000*1350
Overall dimensions ( L x W x H ) mm 6600*600*4800 6600*6000*4800 7000*4700*6000
Water consumption m3/h 6 6 6
Approximate weight Kg 9000 9000 9000
