Product Features：
This machine uses round column as its guide slip surface for steady automatic ups and downs Two optional main drive motors (single speed and dual speeds) are upon the clients choice It is applicable to surface grinding and polishing of tombstones, slabs and mosaic which needs to change the thickness frequently The workable for grinding interiorlexterior arcs is available upon customer srequest

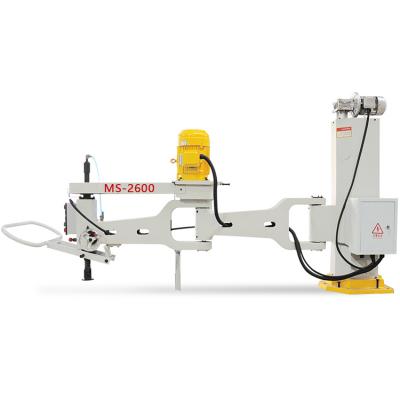

| MS-2600 | ||
|---|---|---|
| Gyro radius | mm | 2600 |
| Range of vertical stroke | mm | 0-800 |
| Grinding wheel diameter | mm | 220 |
| Overall dimensions (L x W x H) | mm | 3500*650*1700 |
| Main motor power | KW | 5.5 |
| Water consumption | m³/h | 3 |
| Approximate weight | kg | 850 |
Table for Arc slab polishing：
| MS-2600 Table for Arc slab polishing | ||
|---|---|---|
| Table dimensions (L x W x H) | mm | 1200*650*670 |
| Table main motor power | KW | 1.1 |
| Table rotating degree | n° | 0±45° |
| Approximate weight | kg | 200 |
