Quick Details on Diamond Segments for Stone Cutting

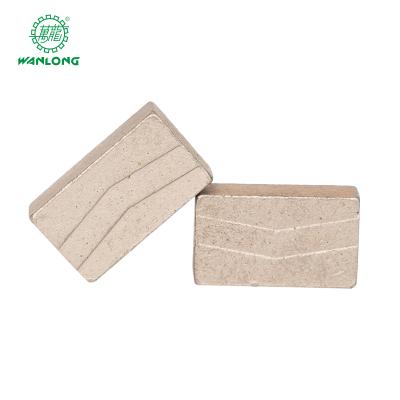

WANLONG SEGMENT FOR GRANITE CUTTING
1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.
| Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|---|---|---|---|---|
| 900 | 5.0 | 24×7.0/6.2×13(15,20) | 64 | Z3T/Z3T-M (conical) | Granite |
| 1000 | 5.0 | 24×7.0/6.2×13(15,20) | 70 | Z3T/Z3T-M (conical) | Granite |
| 1200 | 5.5 | 24×7.4/6.6×13(15,20) | 80 | Z3TZ3T-M (conical) | Granite |
| 1400 | 6.0 | 24×8.0/7.2×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1400 | 6.5 | 24×8.4/7.6×13(15,20) | 92 | Z3T/Z3T-M (conical) | Granite |
| 1600 | 7.2 | 24×9.2/8.4×13(15,20) | 108 | Z3T/Z3T-M (conical) | Granite |
| 1800 | 7.5 | 24×10/9.2×13(15,20) | 120 | Z3T/Z3T-M (conical) | Granite |
| 2000 | 8.0 | 24×11/10×15(20) | 128 | Z3T/Z3T-M (conical) | Granite |
| 2200 | 9.0 | 24×11/10×15(20) | 132 | Z3T/Z3T-M (conical) | Granite |
| 2500 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 2700 | 9.0 | 24×12/11×20(30) | 140 | Z3T/Z3T-M (conical) | Granite |
| 3000 | 9.3 | 24×13/12×20(30) | 160 | Z3T/Z3T-M (conical) | Granite |
| 3500 | 9.5 | 24×13.5/12.5×20(30) | 180 | Z3T/Z3T-M (conical) | Granite |
WANLONG SEGMENT FOR MARBLE CUTTING
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long life span.
2 Good cutting result:smooth cutting,flat surface and even size.
3 stable cutting,narrow cutting gap,stone waste reduction.
| Diameter(mm) | Steel core(mm) | Head size(mm) | Segment Number | Shape | Application |
|---|---|---|---|---|---|
| 900 | 5.0 | 24×7.5×10(13) | 64 | Z(straight) | marble |
| 1000 | 5.0 | 24×7.5×10(13) | 70 | Z(straight) | marble |
| 1200 | 5.5 | 24×8.0×10(13) | 80 | Z(straight) | marble |
| 1400 | 6.0 | 24×8.5×10(13) | 92 | Z(straight) | marble |
| 1600 | 7.0 | 24×9.5×10(13) | 108 | Z(straight) | marble |
| 1800 | 7.5 | 24×10×10(13) | 120 | Z(straight) | marble |
| 2000 | 8.0 | 24×11×10(13) | 128 | Z(straight) | marble |
| 2200 | 8.0 | 24×11×10(13) | 132 | Z(straight) | marble |
| 2500 | 9.0 | 24×12.5×10(13) | 140 | Z(straight) | marble |
| 2700 | 9.0 | 24×12.5×10(13) | 140 | Z(straight) | marble |
| 3000 | 9.3 | 24×13×10(13) | 160 | Z(straight) | marble |
Other specifications are available upon request.
