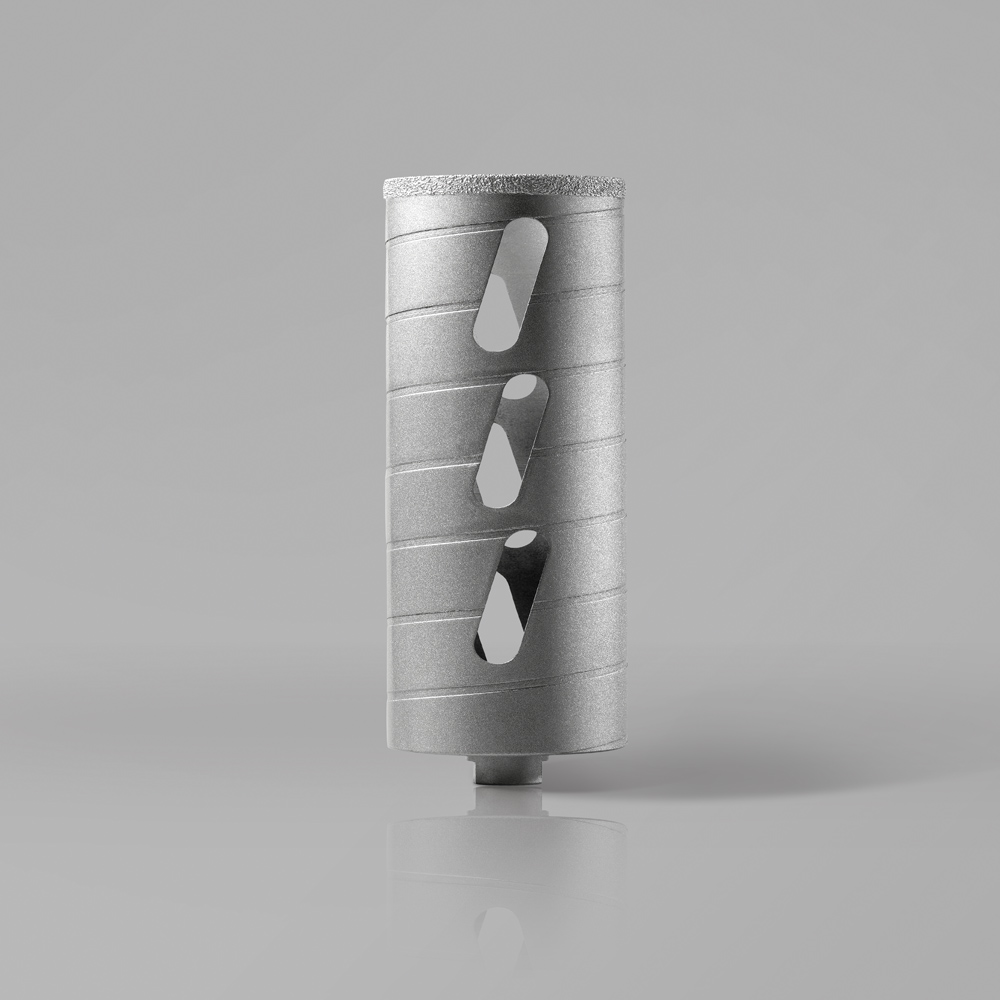

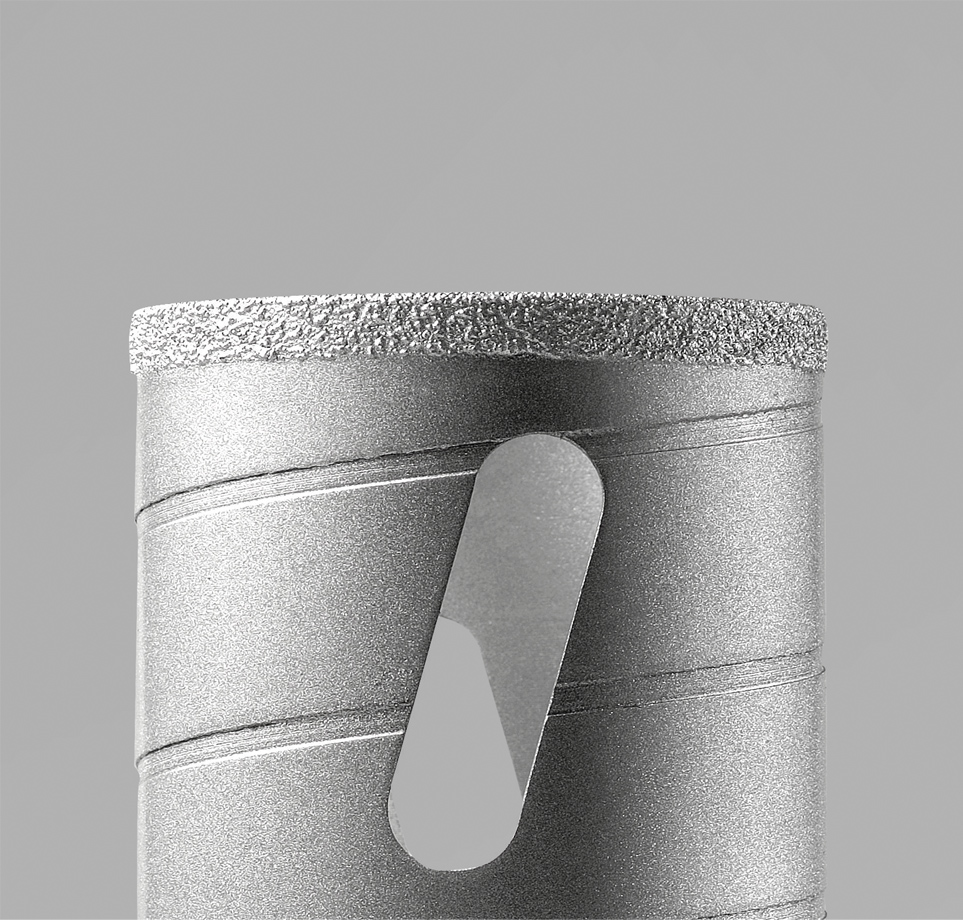

1.Diamonds are vacuum brazed on steel body and become part of the body, increasing drill bit strength, extending tool lifespan and making faster core drilling;
2. Simply faster drilling speed, designed for concrete, masonry, block and brick;
3. Wet Use suggested, can perform with dry use at minimized drill life;
4. Available with up to 14" Tube Length.
| Diameter(Inch/mm) | Segment Height(mm) | Grit Size(#) | Connection |
|---|---|---|---|
| 1“/25.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 1-1/8"/29.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 1-1/4"/32.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 1-3/8"/35.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 1-1/2"/38.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 1-3/4"/45.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 2"/51.0 | 8.0-10.0 | 30#-40# | 5-8"-11 |
| 2-1/4"/57.0 | 8.0-10.0 | 30#-40# | 1-1/4"-7 |
| 2-1/2"/63.0 | 8.0-10.0 | 30#-40# | 1-1/4"-7 |
| 3"/76.0 | 8.0-10.0 | 30#-40# | 1-1/4"-7 |
| 3-1/2"/90.0 | 8.0-10.0 | 30#-40# | 1-1/4"-7 |
| 4"/102.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 5"/127.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 6"/152.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 7"/178.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 8"/203.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 9"/229.0 | 8.0-12.0 | 30#-40# | 1-1/4"-7 |
| 10"/254.0 | 8.0-15.0 | 30#-40# | 1-1/4"-7 |
| 12"/305.0 | 8.0-15.0 | 30#-40# | 1-1/4"-7 |
| 14"/356.0 | 8.0-15.0 | 30#-40# | 1-1/4"-7 |
