Features and Application

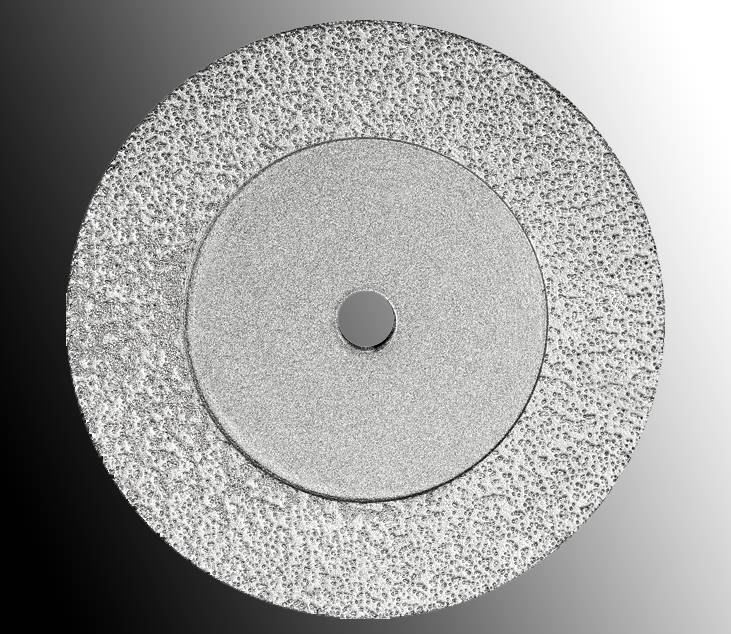

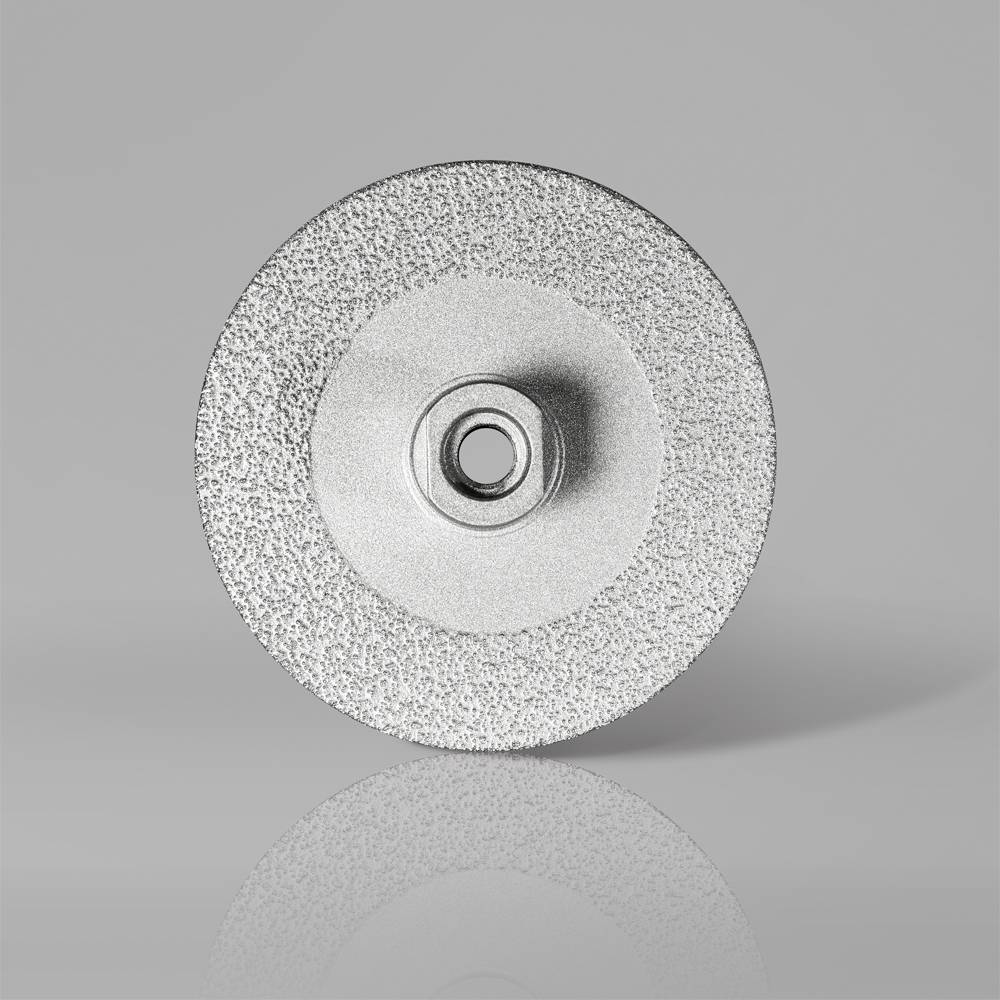

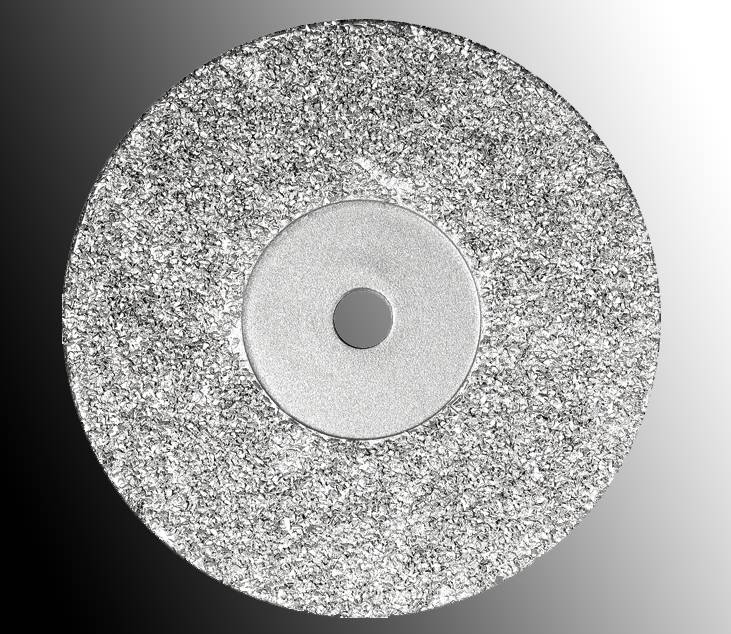

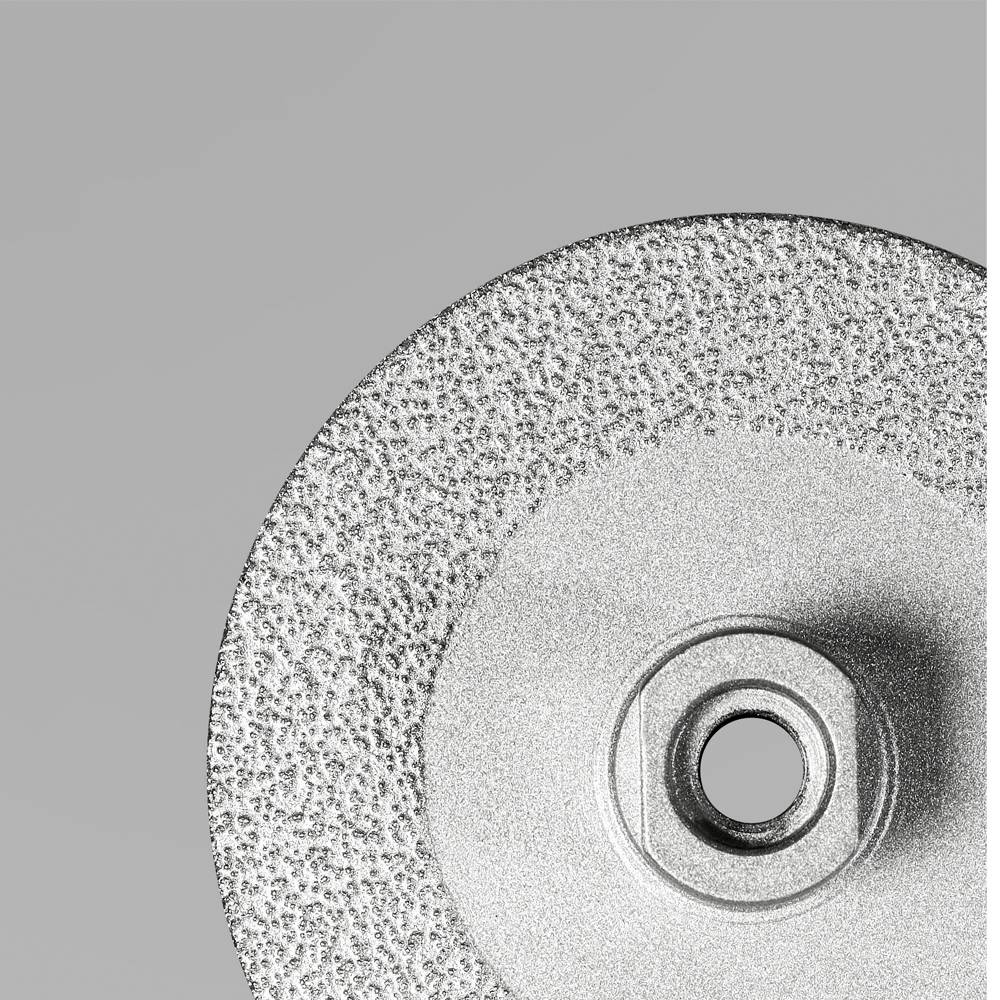

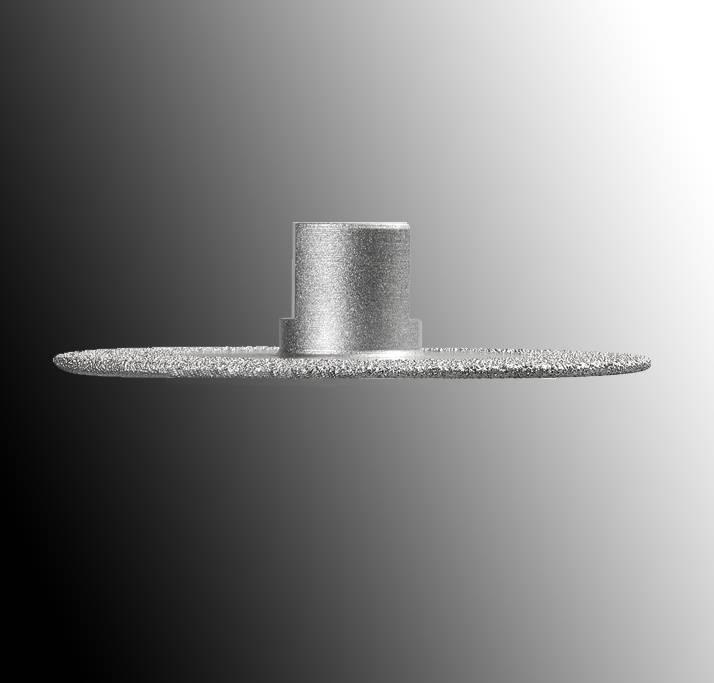

1. Vacuum Brazed Diamond Wheel serve as dual purpose application. Diamond is vacuum brazed on its face and edges, this design along with the high diamond concentration makes the wheel able to cut and grind stone edges;
2. Available in 30/40# Coarse grit and 50/60# Medium grit in 4"-6" diameter;
3. Designed with 7/8" arbor, M14 or 5/8"-11 thread for most popular models of grinders;
4. Could be used for wet or dry on marble, limestone and granite.
Diameter(Inch/mm) Segment Height(mm) Grit Size(#) Connection
100 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11
115 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11
125 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11
150 2.0-5.0 30#-40#,50-60# 7/8“-5/8"/M14/5/8"-11
Other specifieations available upon request
