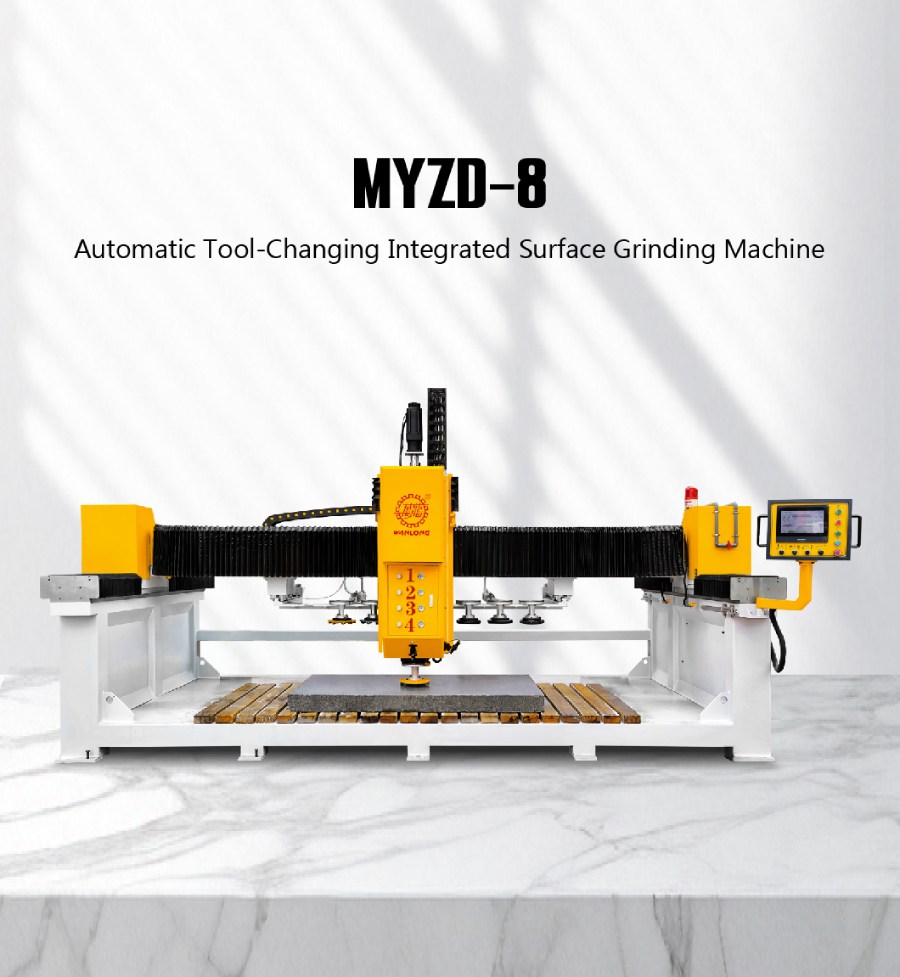

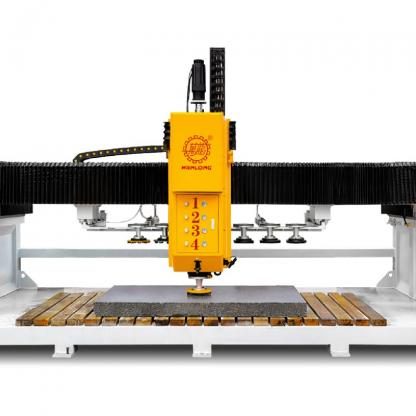

This machine is the latest automatic polisher equipped with a camera and an automatic head changing system with a diameter of 200 mm. It allows simultaneous polishing of elements with various shapes and thicknesses. The advanced yet intuitive control system enables quick programming of the machine and efficient execution of even complex projects.

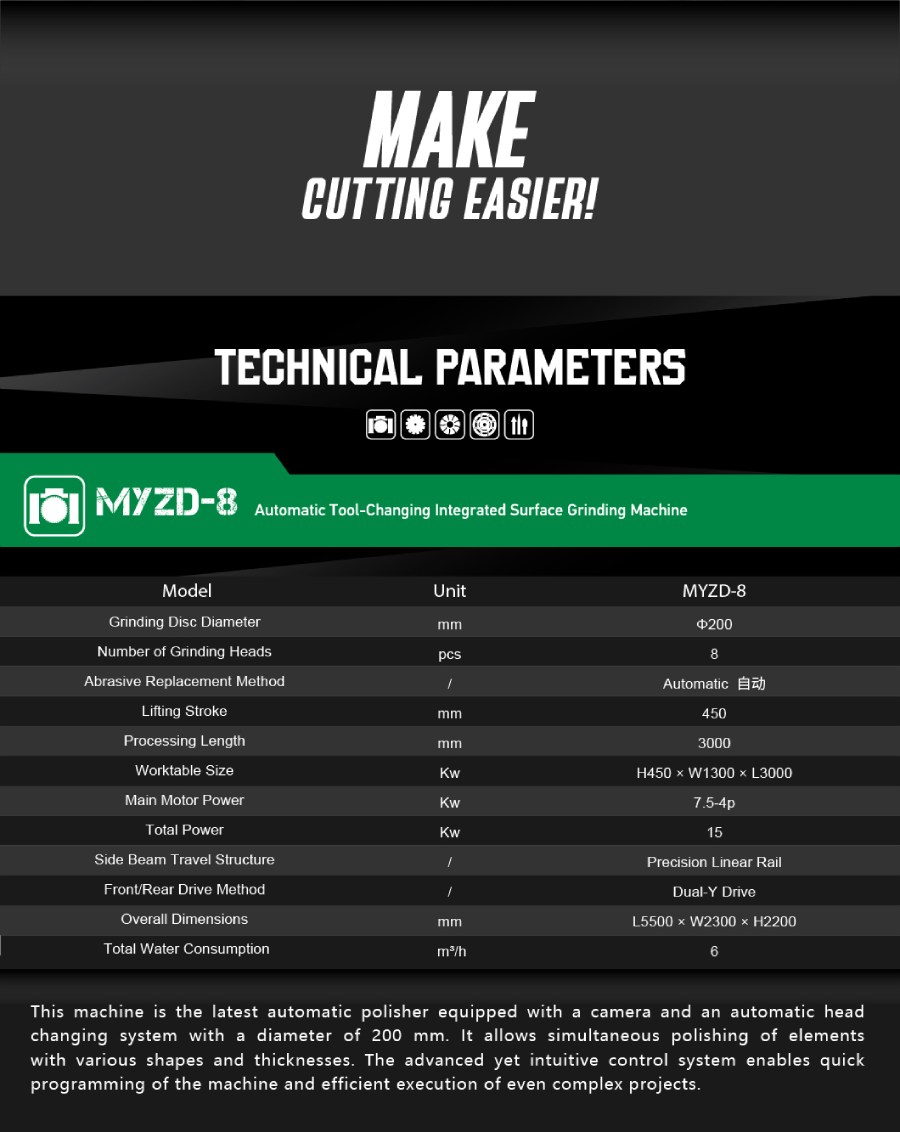

| Model | Unit | MYZD-8 |
|---|---|---|
| Grinding Disc Diameter | mm | 200 |
| Number of Grinding Heads | pcs | 8 |
| Abrasive Replacement Method | / | Automatic |
| Lifting Stroke | mm | 450 |
| Processing Length | mm | 3000 |
| Worktable Size | kw | H450 x W1300 x L3000 |
| Main Motor Power | kw | 7.5-4p |
| Total Power | kw | 15 |
| Side Beam Travel Structure | / | Precision Linear Rail |
| Front/Rear Drive Method | / | Dual-Y Drive |

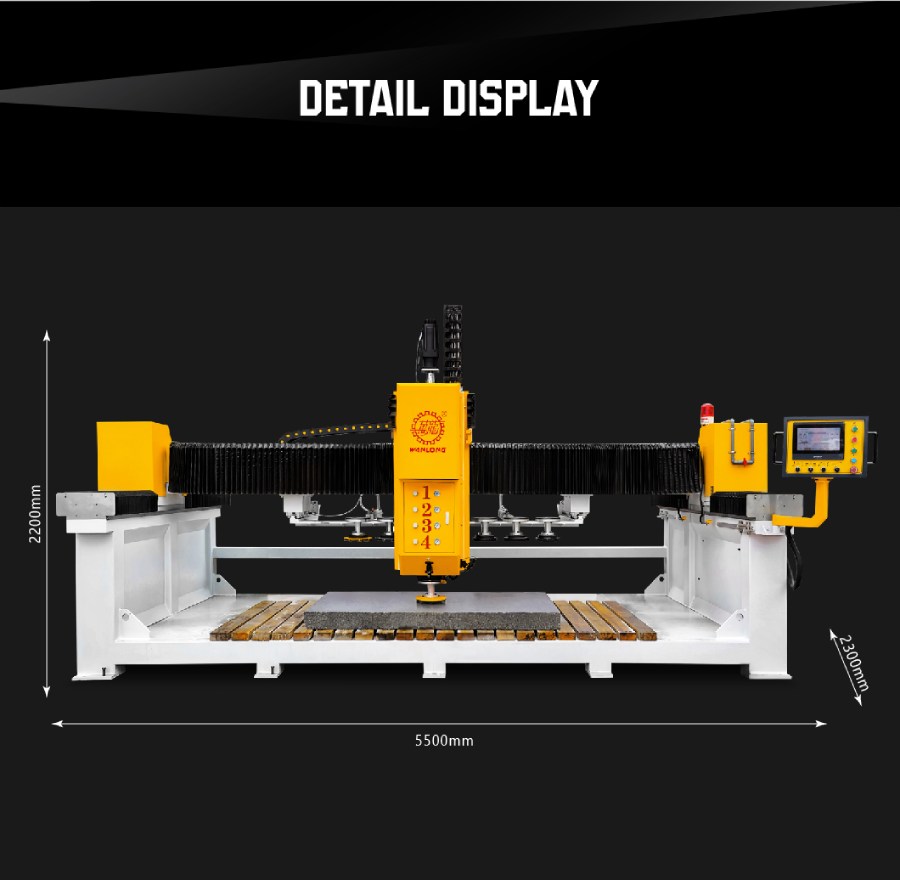

| Overall Dimensions | mm | L5500 xW2300 xH2200 |
| Total Water Consumption | m³/h | 6 |
