PLC/Smart-600
Compared with ordinary bridge cutting machines, the cutting efficiency of this machine is increased by more than 20%. Especially suitable for cutting high-value granite and marble blocks.
PLC/Profile-600
This machine has two functions of slicing and profiling. Compared with similar products, the efficiency is increased by more than 20%. It is especially suitable for cutting and profiling high-value granite and marble blocks.
| Model | Unit | PLC/Smart-600 | PLC/Profile-600 |
|---|---|---|---|
| Max.diameter of blade | mm | 600 | 600 |
| Range of vertical stroke | mm | 450 | 450 |
| Max.cutting size(LxWxH) | mm | 3200*2000*180 | 3200*2000*180 |
| Table dimensions(L x W) | mm | 3200*2000 | 3200*2000 |
| Table tilting degree | ° | 0°-85° | 0°-85° |
| Table rotating degree | ° | 90°/360° (0°/45°/90°180,270° Positioning) | 90°/360° (0°/45°/90°180,270° Positioning) |
| Main motor power | Kw | 15/18.5 | 15/18.5 |
| Total power | Kw | 20.2/23.7 | 21.7/25.2 |
| Water consumption | m³/h | 4 | 4 |
| Overall dimensions(LxWxH) | mm | 6000*4500*3000 | 6000*4500*3000 |
| Approximate Weight | Kg | 4800 | 4800 |
The machine adopts PLC programmable controller and man-machine operation interface control. The left and right feeding is controlled by a special frequency converter for stone, and the slicing is controlled by a servo to realize the rapid withdrawal and slicing.

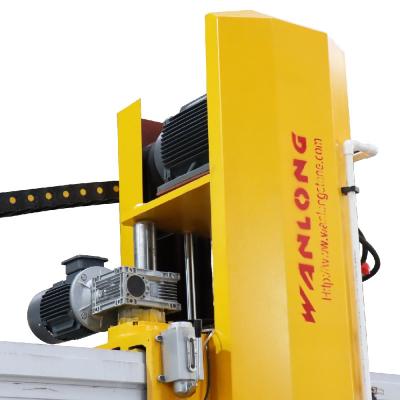

It adopts servo motor + ball screw for up and down lifting in structure, combined with chrome-plated guide post and wear-resistant guide sleeve, with small matching gap, wear-resistant and beautiful. And the multi-layer seal is designed in the guide sleeve, which is waterproof, dustproof and oil leakage, to achieve rapid rise and fall, fast profiling and improve service life.
The front and rear slicing adopts high-precision rack and pinion transmission, and the key parts are all imported high-quality parts. It has fast feeding return speed, good cutting stability and high profiling accuracy.
This machine has two functions of slicing and profiling. Compared with similar products, the efficiency is increased by more than 20%. It is especially suitable for cutting and profiling high-value granite and marble blocks.
The lifting distance is controlled by encoder. The unique hydraulic system controls the elevation positioning accuracy.
The profiling graphics can be drawn directly on the man-machine interface or imported from a USB, which has higher profiling accuracy than traditional photoelectric switches, and truly achieves high-speed, high-efficiency, high-precision edge trimming and profiling
The feedback
unit is installed in thesystem
to automatically identify the distance of the slicing. There is no need for slow buffering. The slicing speed is twice as fast as that of the ordinary inverter.
