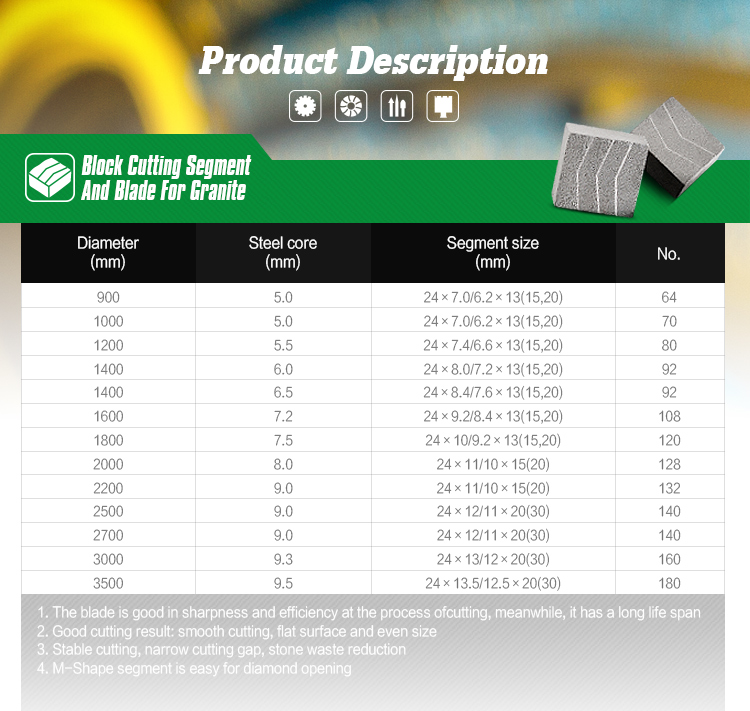

Diameter(mm) Steel core(mm) Head size(mm) No. Shape Application
900 5.0 24×7.0/6.2×13(15,20) 64 Z3T/Z3T-M (conical) Granite
1000 5.0 24×7.0/6.2×13(15,20) 70 Z3T/Z3T-M (conical) Granite
1200 5.5 24×7.4/6.6×13(15,20) 80 Z3TZ3T-M (conical) Granite
1400 6.0 24×8.0/7.2×13(15,20) 92 Z3T/Z3T-M (conical) Granite
1400 6.5 24×8.4/7.6×13(15,20) 92 Z3T/Z3T-M (conical) Granite
1600 7.2 24×9.2/8.4×13(15,20) 108 Z3T/Z3T-M (conical) Granite
1800 7.5 24×10/9.2×13(15,20) 120 Z3T/Z3T-M (conical) Granite
2000 8.0 24×11/10×15(20) 128 Z3T/Z3T-M (conical) Granite
2200 9.0 24×11/10×15(20) 132 Z3T/Z3T-M (conical) Granite
2500 9.0 24×12/11×20(30) 140 Z3T/Z3T-M (conical) Granite
2700 9.0 24×12/11×20(30) 140 Z3T/Z3T-M (conical) Granite
3000 9.3 24×13/12×20(30) 160 Z3T/Z3T-M (conical) Granite
3500 9.5 24×13.5/12.5×20(30) 180 Z3T/Z3T-M (conical) Granite
Other specifications are available upon request.
