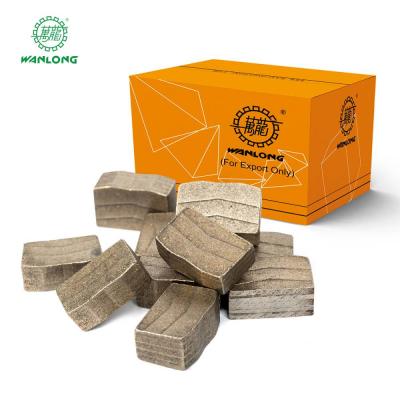

Diamond Segment for Quarry Stone

Product Features:

WANLONG Quarrying segments occupy a fairly high share in the domestic stone mining market You can see the WANLONG quarrying segments in almost all stone mines in China WANLONG quarrying segments have outstanding sharpness and lifespan, with its price ratio much better than that for same products from other stone quarrying segments suppliers

Fujian Quanzhou Wanlong Diamond Tool Co., Ltd. has been rated as one of the “Top Ten Enterprises” in the diamond tool industry for 10 consecutive years. WANLONG has been continuously committed to technical research and development and update of its products, investing tens of millions of R&D funds every year. Thanks to its good sharpness and lifespan, WANLONG Quarrying Segments have been recognized and highly praised by those who are in the stone industry domestically and abroad. In the year 2018, WANLONG Quarrying segments won the title of “China National Top Sales Products”.

WANLONG Quarrying segments occupy a fairly high share in the domestic stone mining market. You can see the WANLONG quarrying segments in almost all stone mines in China. WANLONG quarrying segments have outstanding sharpness and lifespan, with its price ratio much better than that for same products from other stone quarrying segments suppliers.

Product Sepcification

There are 4 main Double-blades-Combinations: D2200/D3300, D2200/D3600, D2400/D3300, D2400/D3600
Detailed Parameters

Blank thickness
(MM)
Blanks Diameter
(MM)
Blanks tips
(PCS)
Segment Size
(MM)
9.5/10.0 2200 132 23*14/13*15
9.5/10.0 2400 136 23*14/13*15
9.5/10.0 3300 170 23*12.5/11.5*15
9.5/10.0 3600 180 23*12.5/11.5*15

There are 3 main Triple -Blade-Combinations: D2600/D3600/D4200,D2600/D3800/D4600, D2600/D3800/D4800
Detailed Parameters:

Blank thickness
(MM)
Blanks Diameter
(MM)
Blanks tips
(PCS)
Segment Size
(MM)
12 2600 142 23*16/15*15
12 3600 180 23*15/14*15
12 4200 210 23*14/13*15

Blank thickness
(MM)
Blanks Diameter
(MM)
Blanks tips
(PCS)
Segment Size
(MM)
12 2600 154 23*16/15*15
12 3800 190 23*15/14*15
12 4600 230 23*14/13*15

Blank thickness
(MM)
Blanks Diameter
(MM)
Blanks tips
(PCS)
Segment Size
(MM)
12 2600 180 23*16/15*15
12 3800 190 23*15/14*15
12 4800 240 23*14/13*15



Characteristics of Stone Quarrying Equipments

Quarrying Equipments: Double Blades Quarrying Machine

The headstock of such double-blade quarrying machine is directly connected, eliminating the requirement of replacing the belt daily, maximizing the effective power of the motor. Such machine uses the electronic control box of Siemens technology, with the microcomputer doing tracking automatically, reducing the speed automatically in advance when the motor is overloaded and the blade is clamped, eventually effectively preventing the risk of burning the motor due to the blade clamping, improving the lifespan of the motor, and greatly improving the production efficiency.


Quarrying Equipments in Market Main motor power
(KW)

(RPM)

Characteristics
TYPE 1 55/75 120-130/100-110 New Four WD mechanism
Type 2 55/75 120-130/100-110 New Four WD mechanism
Type 3 45/55 120-130/120-130 New Four WD mechanism
Type 4 45 130-140 Two WD Two Axis Design

Performance of WANLONG Stone Quarrying Segments

WANLONG Quarrying Segment is suitable for granite, marble basalt, slate, sandstone quarrying.   It is quite famous by the quarrying workers, thanks to its speedy, deep and long life cutting.

Material To Cut

Stone Hardness
   Feeding Speed
Lifespan (M)

Blade Combination
(CM) 0-70 Stroke 0-110
Stroke

Smaller Blade

Bigger
Blade
G.天岗白 Hard 12 20-25 45-50 400 450 D2400/D3300
G.623
Meium Hard
12-15 30 60-75 550 950 D2400/D3300
G.654
Soft
20 30 70-80 1000 1300 D2400/D3300

Advantage of WANLONG Quarrying Segments

Good Sharpness: speedy cutting, low current of the machine, mining blocks are square with good flat surface

Long Life: Reducing the times of blanks re-welding, maximizing the lifespan of steelblanks, achieving high cutting linear meters and eventually saving the mining cost for the quarry mining owners.

Good Adaptability: Suitable for different stone and various complicated mining environments.
