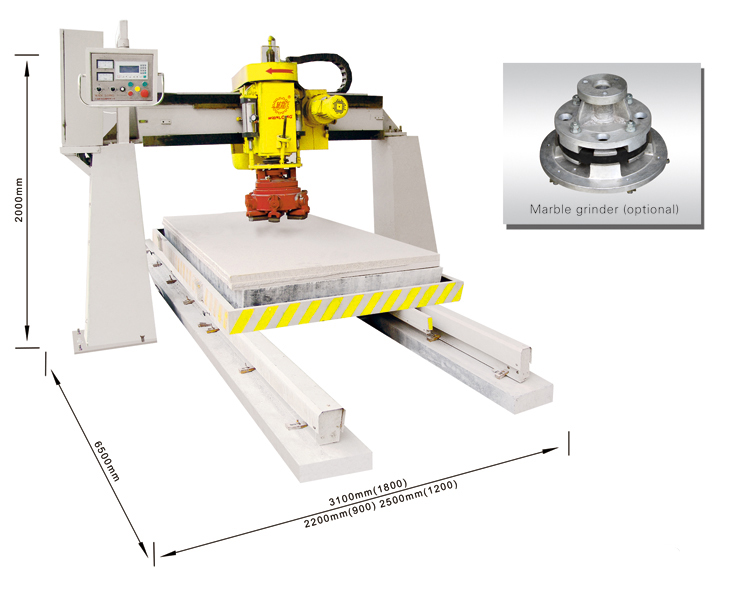

QDM900-1800 Bridge Single Head Automatic Polisher

Product Features:

QDM900-1800 type Bridge Single Head Automatic Polisher is used to grind and polish stone slab Same machine could be used for granite or mable polishing, but differences on polishing head to be installed
Model   QDM-900 QDM-1200 QDM-1800
R.P.M of polishing head r/min 560 560 560
Traverse feeding speed of polishing head mm/min 0-5600 0-5600 0-5600
Lengthways feeding speed of Polishing head mm/min 0-4300 0-4300 0-4300
Supplied by User MPa 0.35-0.5 0.35-0.5 0.35-0.5
Required air source m³/min 0.15-0.30 0.15-0.30 0.15-0.30
Output m²/h 2-2.5 2.5-3 3-3.5
Max. polishing size (L x W x H) mm 3000*900*120 3000*1200*120 3000*1800*120
Overall dimensions (L x W x H) mm 6500*2200*2000 6500*2500*2000 6500*3100*2000
Main motor power KW 15 15 15
Water consumption m³/h 4 4 4
Approximate weight kg 2000 2500 3000
