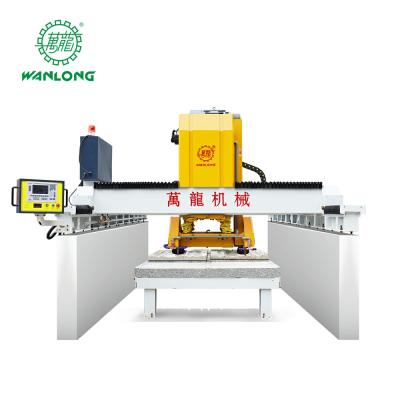

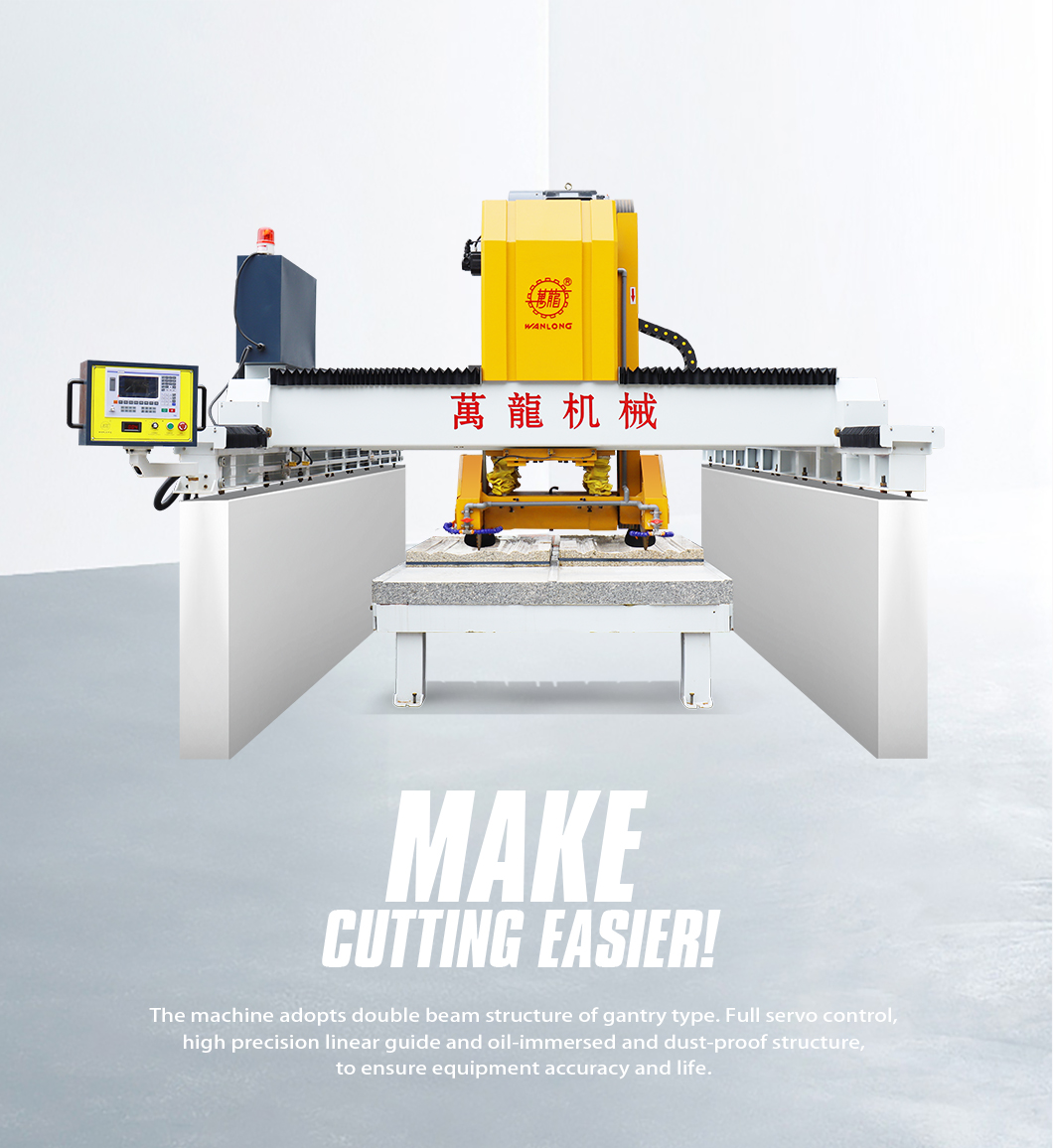

The machine adopts double beam structure of gantry type. Full servo control, high precision linear guide and oil-immersed and dust-proof structure, to ensure equipment accuracy and life. This machine can realize CNC programming and Support CAD import, template profiling tracking, to meet all kinds of high precision stone (cement products) special-shaped workpiece processing.

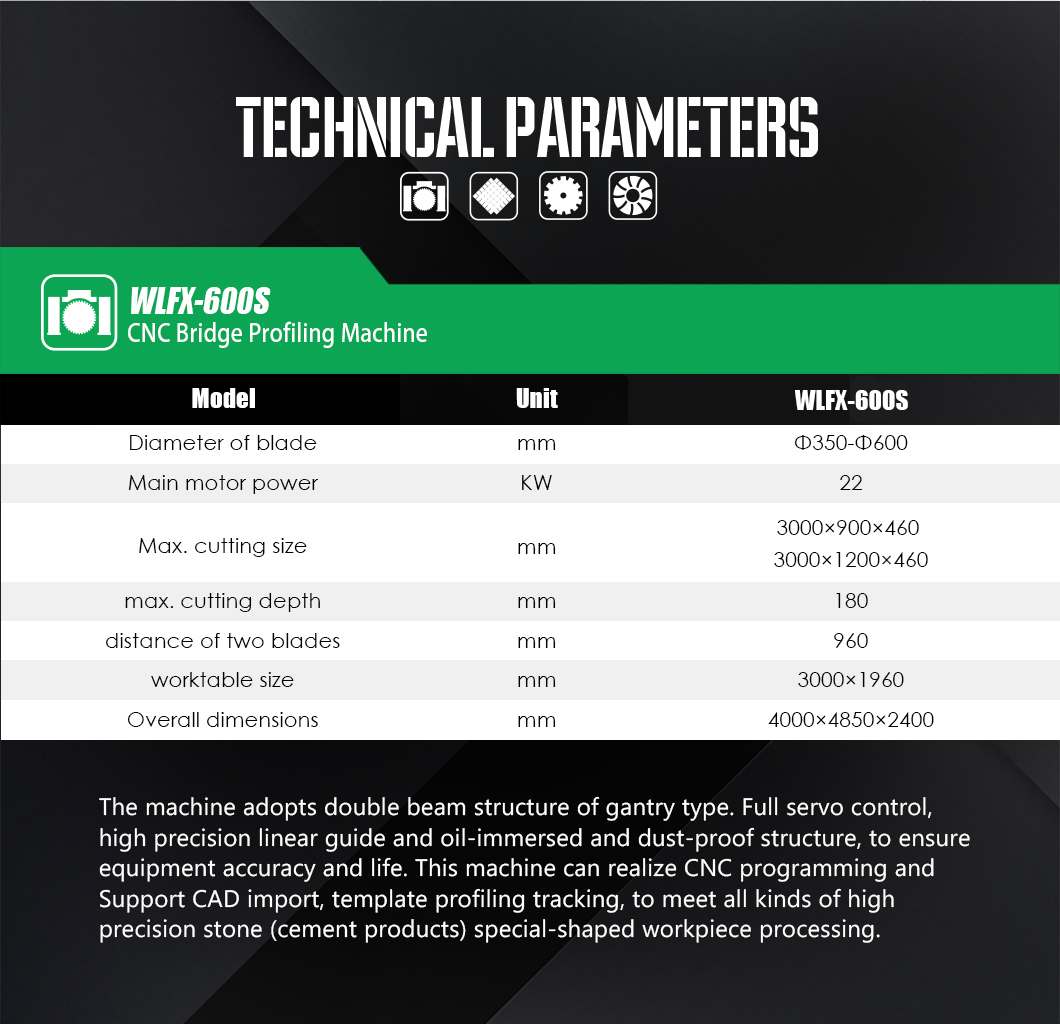

| Model | Unit | WLFX-600S |
|---|---|---|
| Diameter of blade | mm | 350-600 |
| Main motor power | kw | 22 |
| Max. cutting size | mm | 3000×900×460 3000×1200×460 |
| Max.cutting depth | mm | 180 |
| Distance of two blades | mm | 960 |
| worktable size | mm | 3000×1960 |
| Overall dimensions | mm | 4000×4850×2400 |
