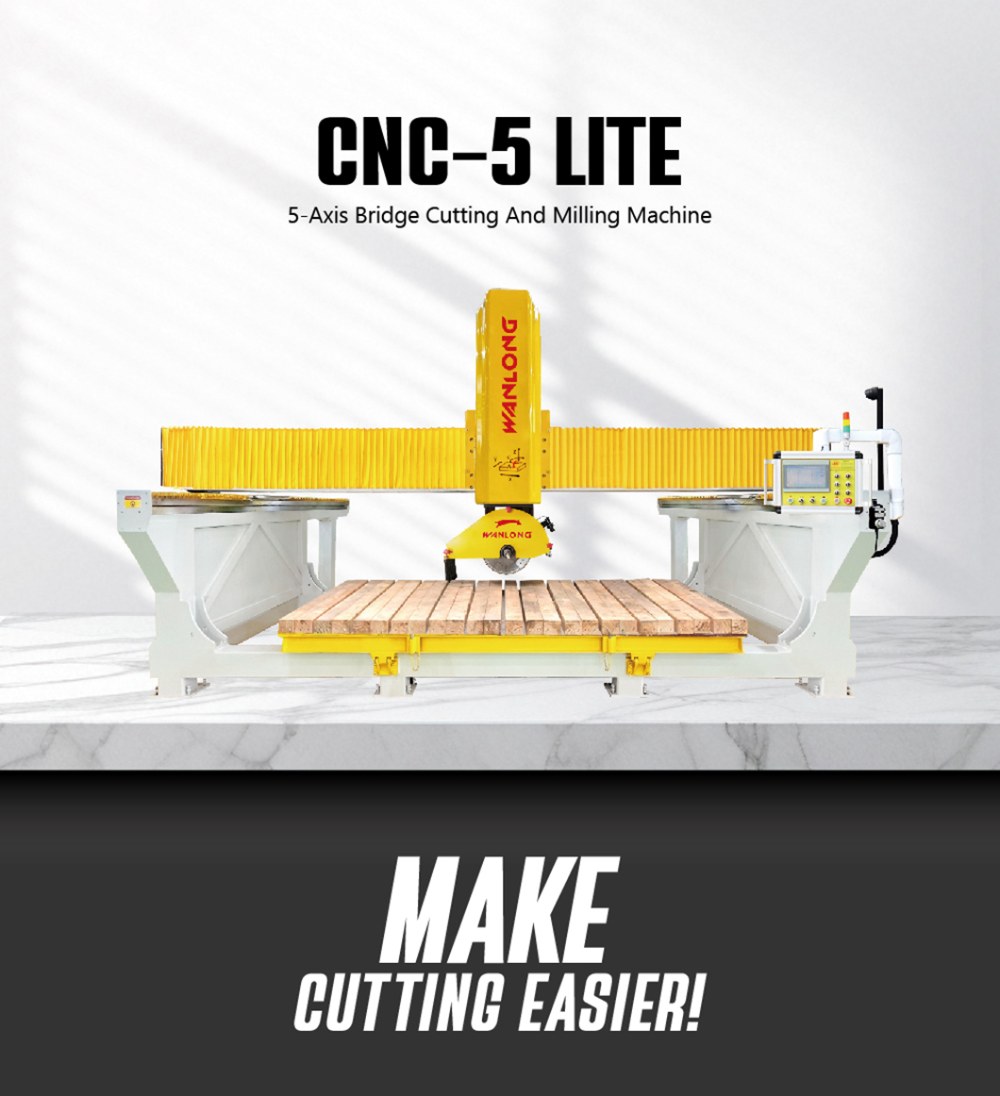

(CNC-5 Lite) 5 Axis Bridge Cutting And Milling Machine
1 plc touch screen, Beckhoff control system, easy to operate.
2 The Y-axis adopts double-drive form, which is easy to adjust crossbeam and ensure the running smoothly and accurately.
3 The transmission connection parts adopt backlash-free connection to ensure the running accuracy and stability.
4 Automatic chamfering cutting, one-button automatic vertical and horizontal cutting.

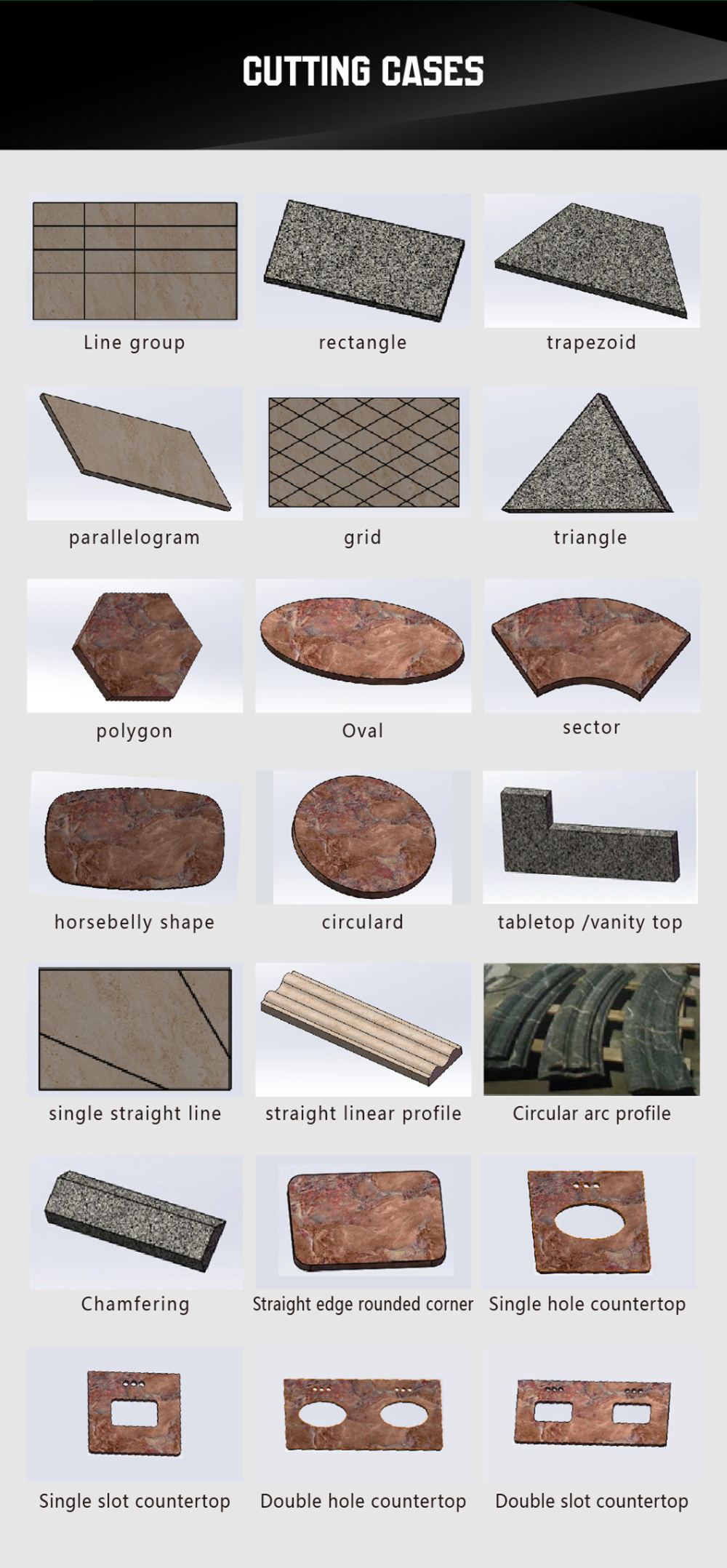

5 Used for straight line and arc profiling cutting.

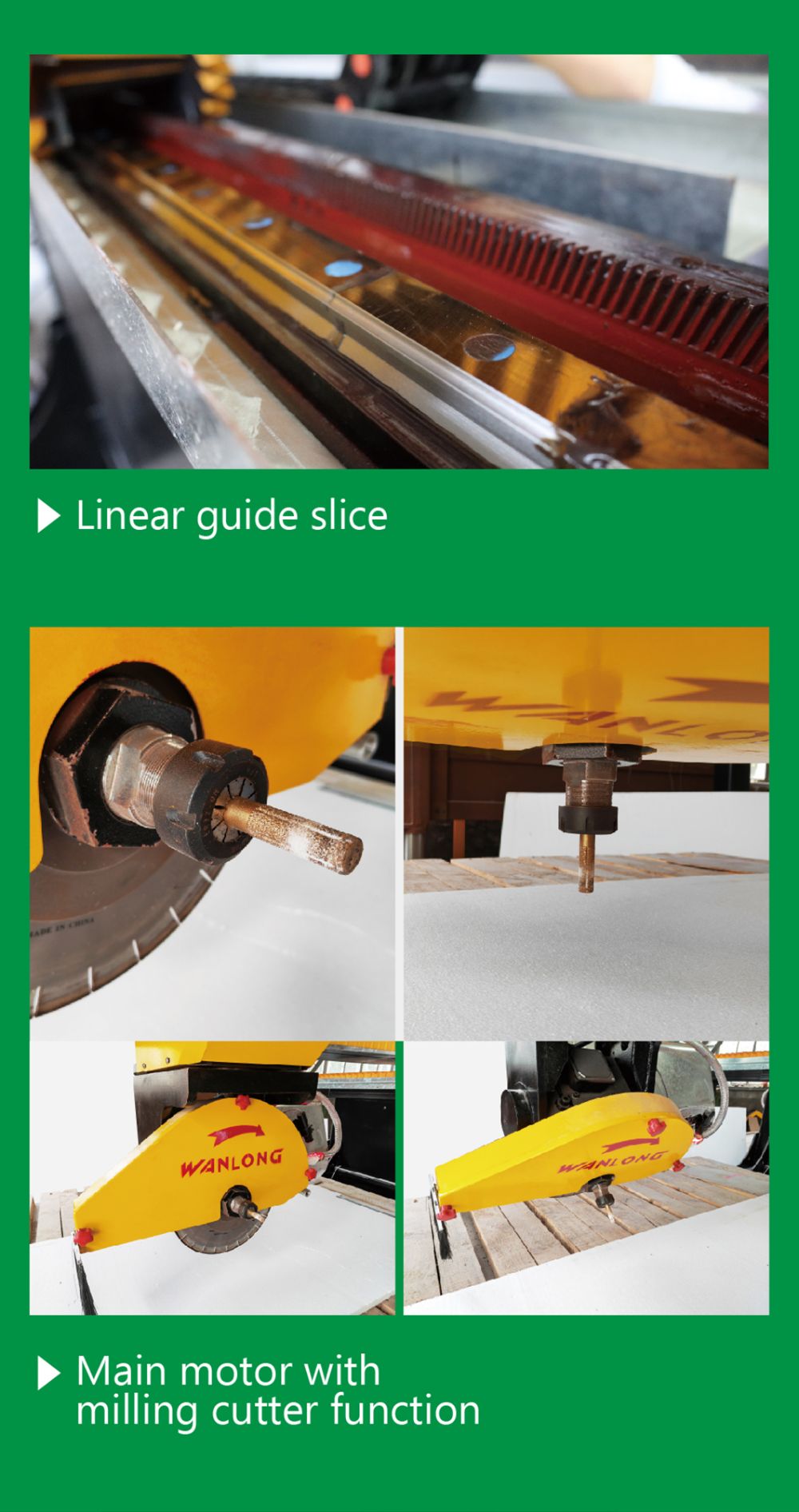

6 Main motor with milling cutter function, can process table tops, vanity tops etc

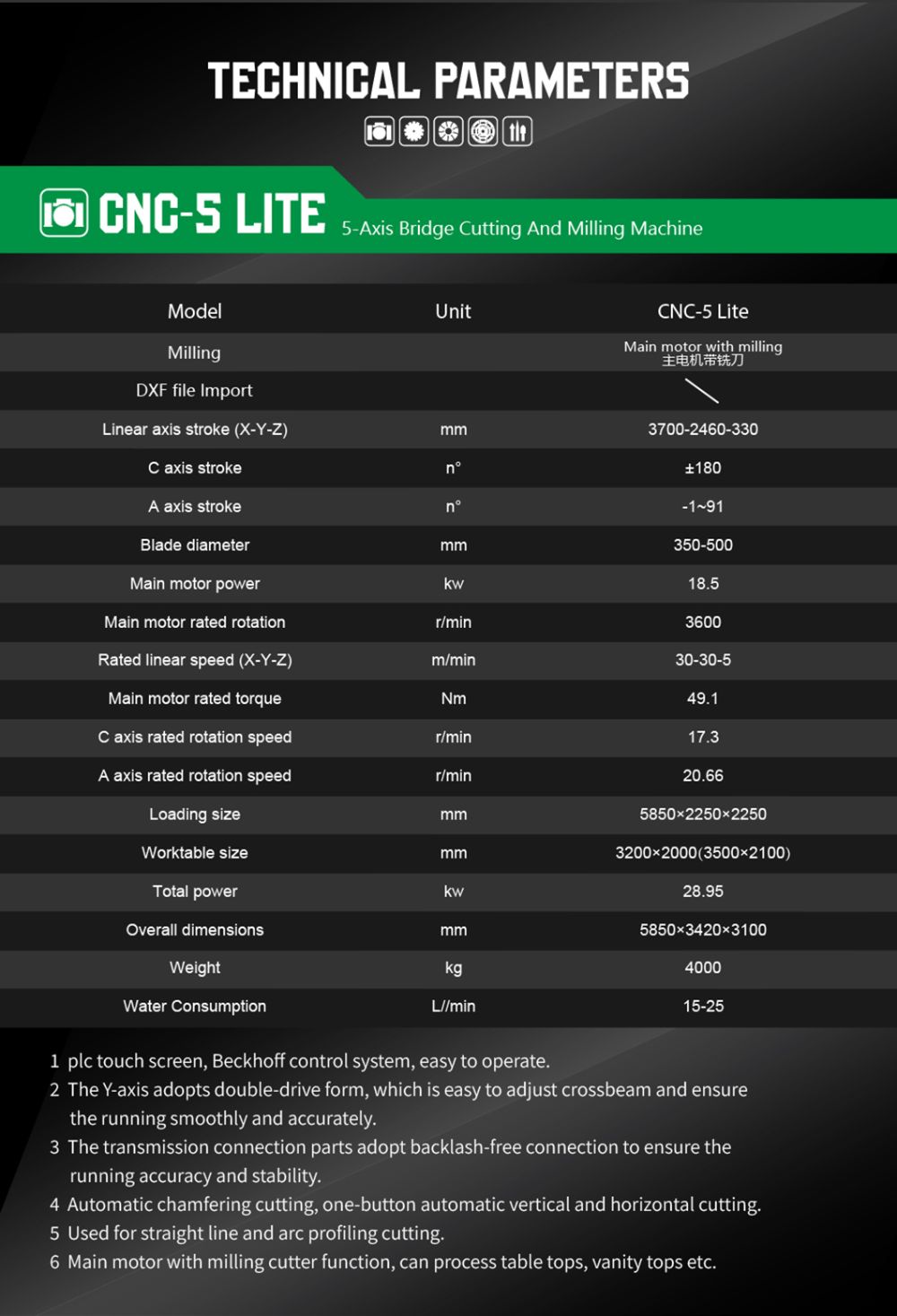

| Model | Unit | CNC-5 Lite |
|---|---|---|
| Milling | Main motor with milling | |
| DXF file Import | \ | |
| Linear axis stroke(X-Y-Z) | mm | 3700-2460-330 |
| C axis stroke | n° | ±180 |
| A axis stroke | n° | -1~91 |
| Blade diameter | mm | 350-500 |
| Main motor power | kw | 18.5 |
| Main motor rated rotation | r/min | 3600 |
| Rated linear speed (X-Y-Z) | m/min | 30-30-5 |
| Main motor rated torque | nm | 49.1 |
| C axis rated rotation speed | r/min | 17.3 |
| A axis rated rotation speed | r/min | 20.66 |
| Loading size | mm | 5850*2250*2250 |
| Worktable size | mm | 3200*2000（3500*2100） |
| Total power | kw | 28.95 |

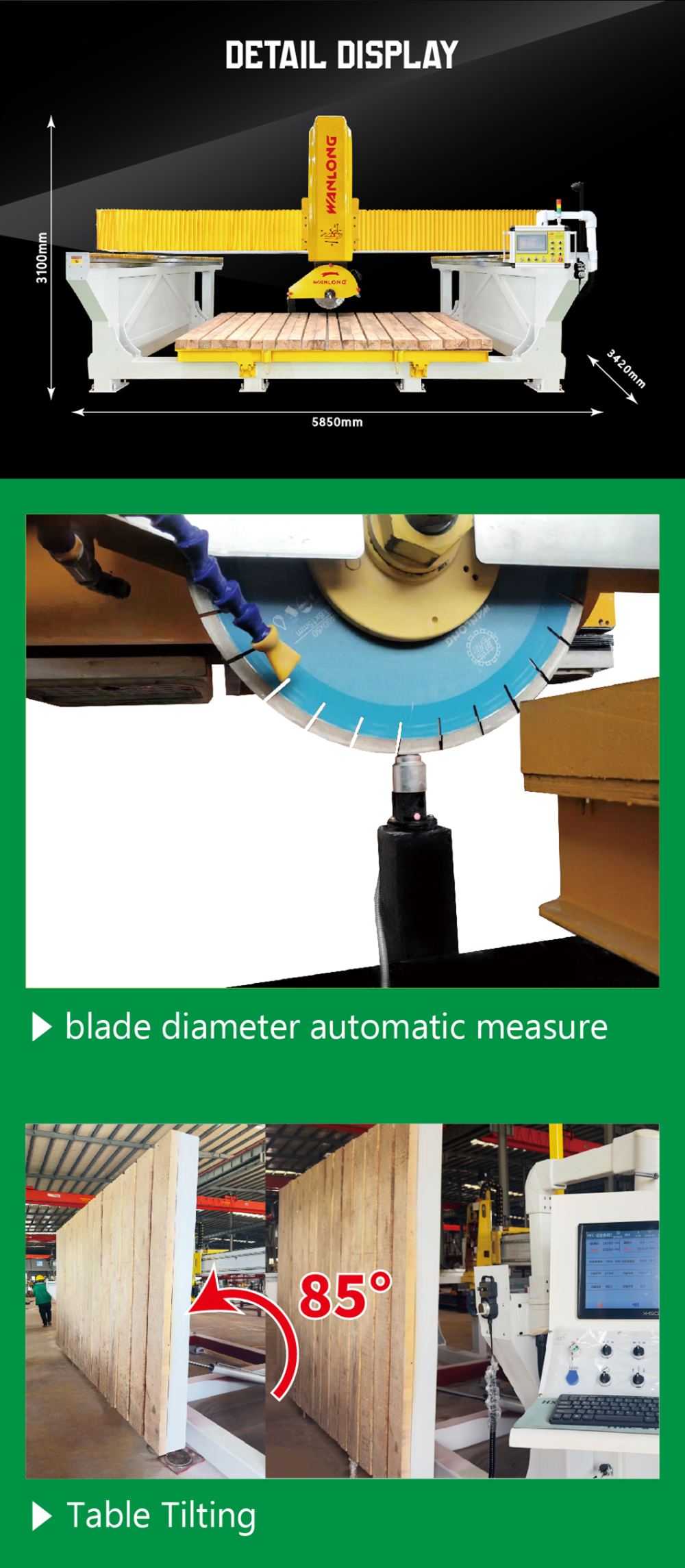

| Overall dimensions | mm | 5850*3420*3100 |
| Weight | kg | 4000 |
| Water Consumption | L/min | 15-25 |
