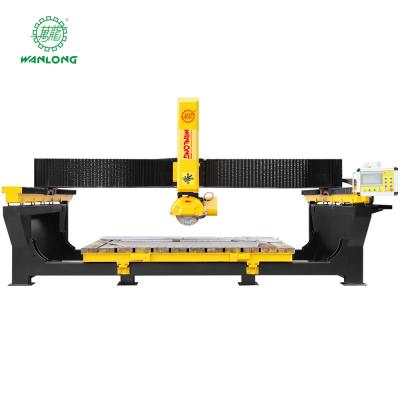

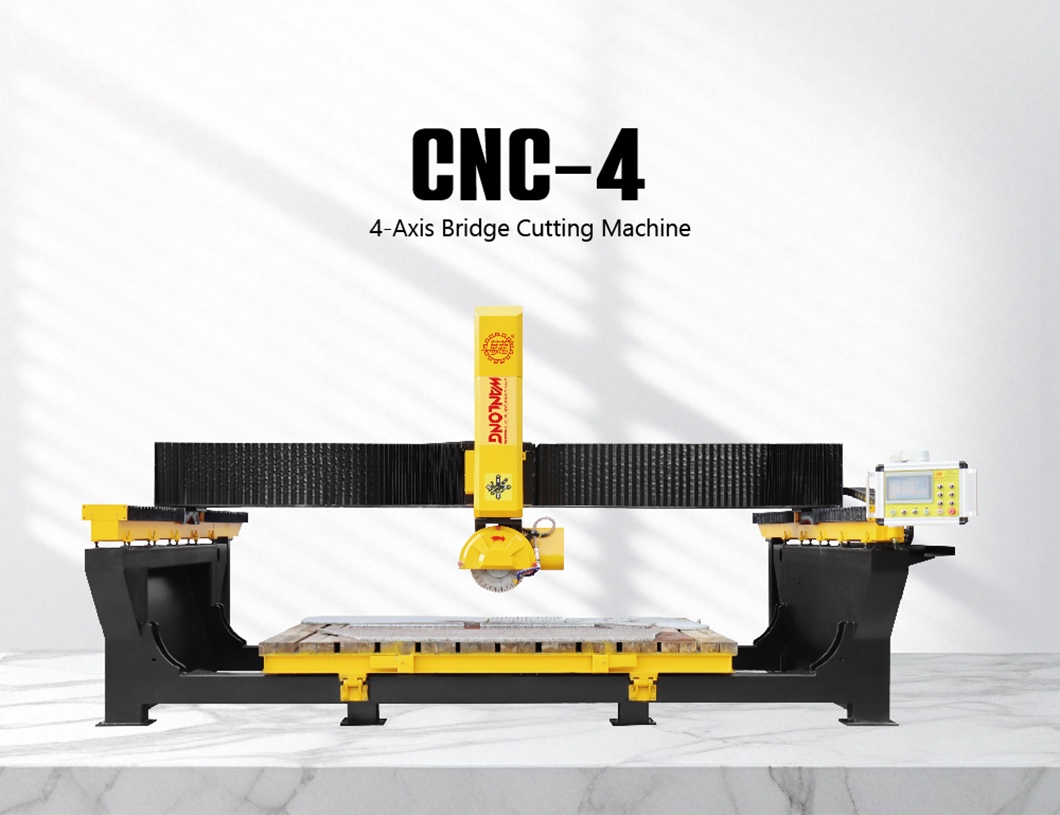

4 axis cnc machining bridge saw stone cutting machine:

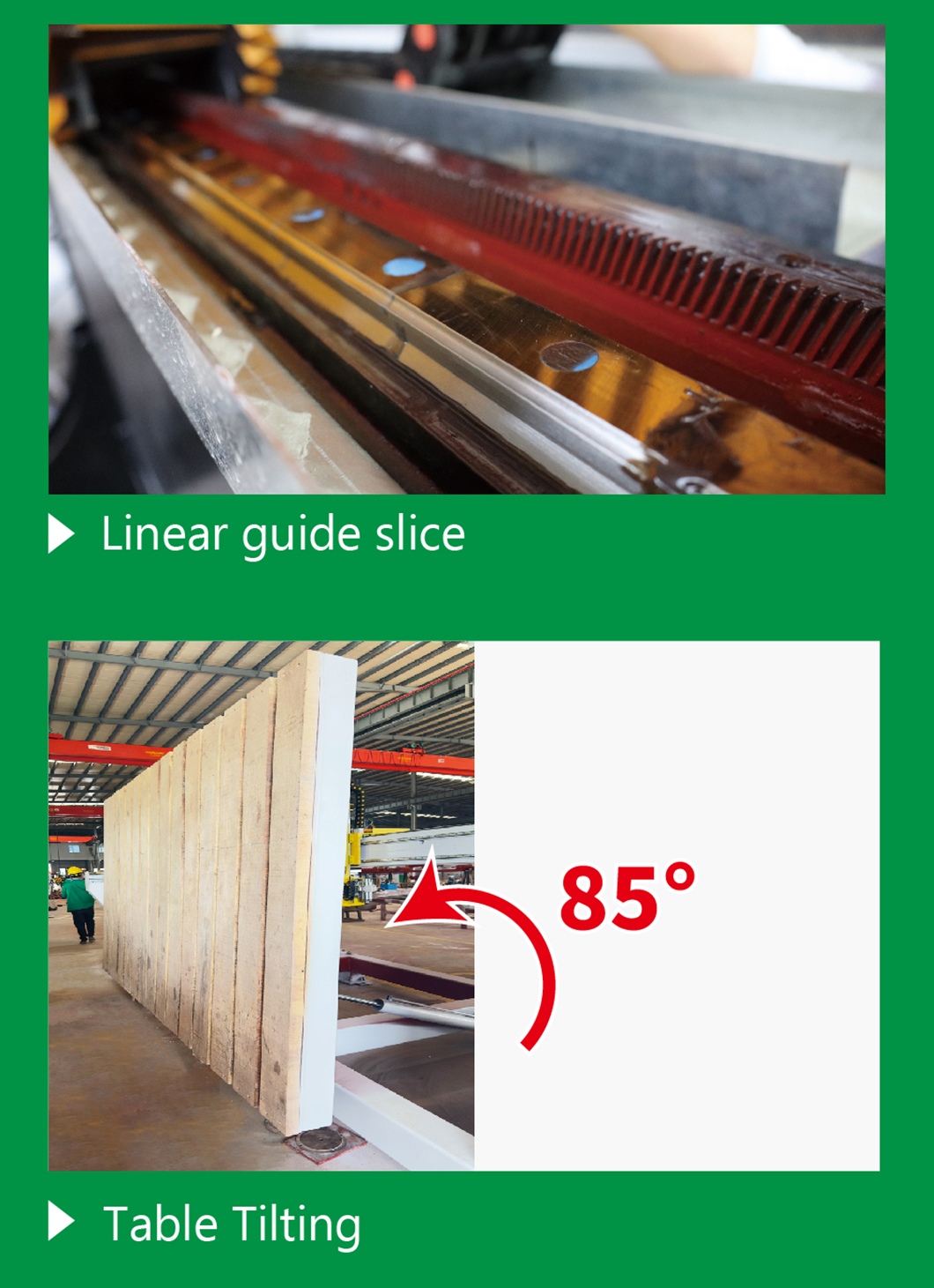

The machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use intermational famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal spliter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.

Technicial Parameter

Model Unit WLCNC-500
diameter of blade mm 700
Dimension of working platform mm 3200*200
Power of main motor kw 18.5
Power of tool slide reciprocating motor kw 1.5
Power of crossbeam shifting motor kw 1.5
Power of hydraulic station motor kw 2.2
Power of elevator motor kw 2
Overall dimension(LxWxH) cm 5700*3300*3100
Gross weight kg 5400
Water consumption m³/h 4
