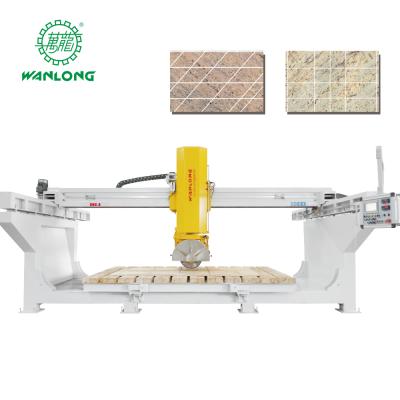

The 3 axis cnc machining bridge saw stone cutting machine is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free. The main control components all use intermational famous brand components, cross frame oil diffuse type double V track, transverse knife adopts stepless frequency conversion speed regulation, longitudinal spliter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision. The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.

Model	Unit	CNC-3	CNC-3A
Blade diameter	mm	250-400mm	500-600mm
Main motor power	KW	11(15)	18.5
Inverter	optional	\	Main motor with inverter
Max.cutting size	mm	3200x2000x80	3200x2000x180(3500X2100x180)
Max.chamfering size	mm	3200x1850x80	3200x2000x180(3500X2100x180)
Table dimensions	mm	3200x2000	3200x2000(3500X2100)
Blade rotation degree	n°	0-90°	0-90°
Blade tilting degree	n°	0-45°	0-45°
Table tilting degree	n°	0-85°	0-85°
Water consumption	m3/h	3	3
Overall dimensions(LxWxH)	mm	5300x3000x2500	5800x3380x3200
Approximate weight	kg	3600	4500

This 3 axis cnc machining bridge saw stone cutting machine is suitable for cutting stone and construction materials such as dekton, ceramic/porcelain, marble, artificial stone, granite, cement products, using high precision linear guide with high cutting precision and stable performance, that is the ideal equipment for processing slabs.
