Model Unit CNC-4
Linear axis stroke(X-Y-Z) mm 3500-2360-330
C axis stroke n° ±180
A axis stroke n° -1~91
Blade diameter mm 350-500
Main motor power kw 18.5
Main motor rated rotation r/min 3600
Rated linear speed (X-Y-Z) m/min 30-30-5
Main motor rated torque nm 49.1
C axis rated rotation speed r/min 17.3
A axis rated rotation speed r/min 20.66
Loading size mm 5675*2250*2250
Worktable size mm 3200*2000（3200*2100）
Main motor power kw 27.7
Overall dimensions mm 5675*3380*3050
Weight kg 3800
Water Consumption L/min 15-25

Introduction

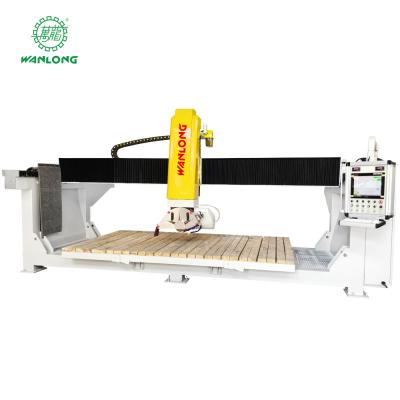

Our WLCNC-500 is a bridge cutting machine for bridge stone cutting, this machine has full function of cutting different kinds a shape for factory use. This bridge cutter marble with very good speed and clean edge also is a good bridge cutting machine for granite, dekton , porceline ..etc.

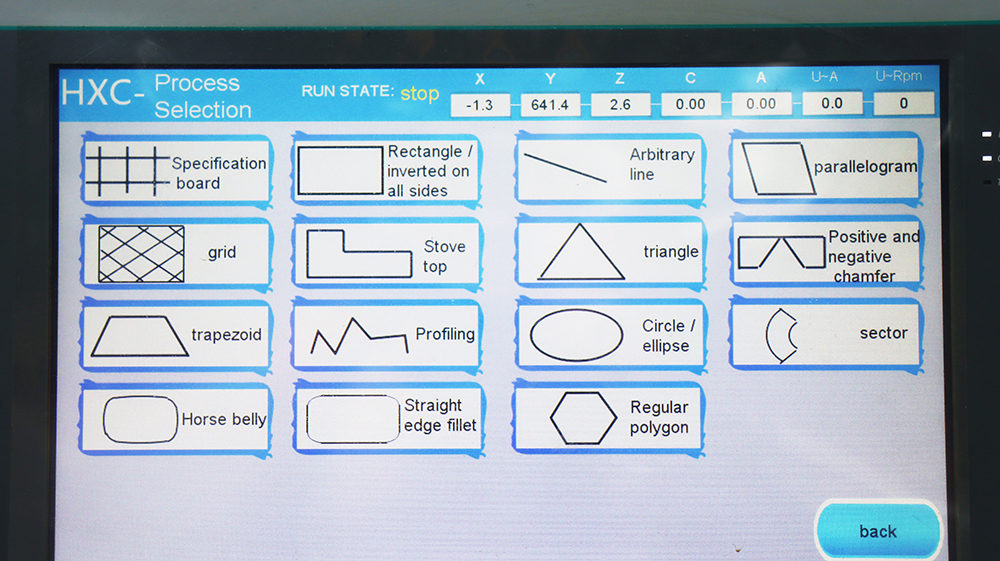

WLCNC-500 use PLC and easy control screen panel which can realized XYZCA four axis

smooth any angle movement.

X: crosswise movement,

Y:lengthways movement,

Z:lifting,

C:cutter 360 horizontal rotation,

A: Cutter 90 vertical titling.

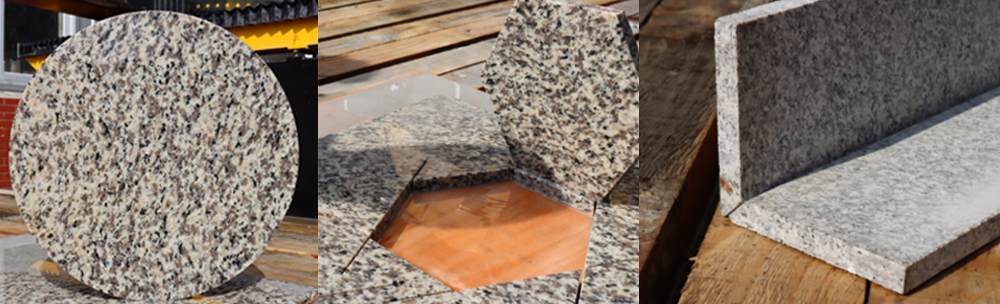

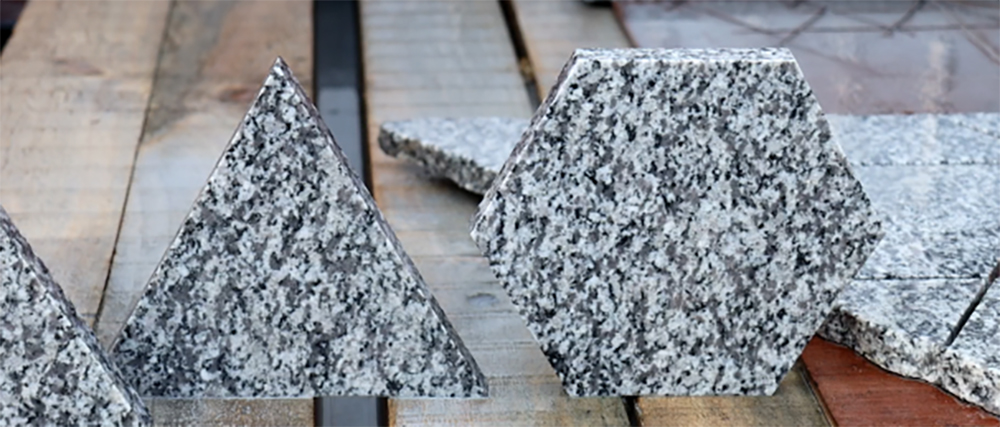

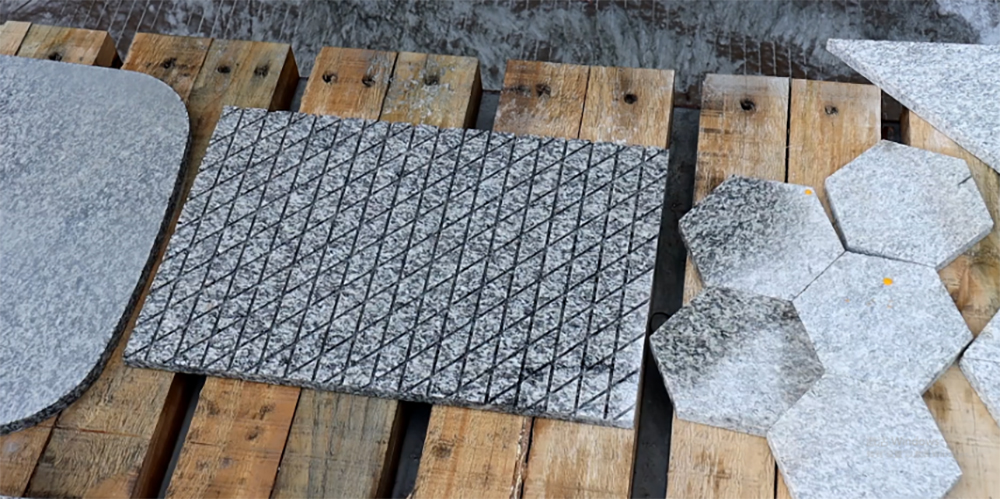

In this way, our WLCNC can cut any degree to reach any place within cutting area, which output all kinds of shapes with optional size like below which are are our current Main shapes:





Performance Speed with Wanlong blades

for Marble: RPM 2300,speed at 2-3m/min

for Granite: RPM2100, speed at 7-9m/min

for dekton: Dekton cutting,RPM 2400, speed at 3-3.5m/min

for Ceramic : RPM2600, speed at 3-4m/min

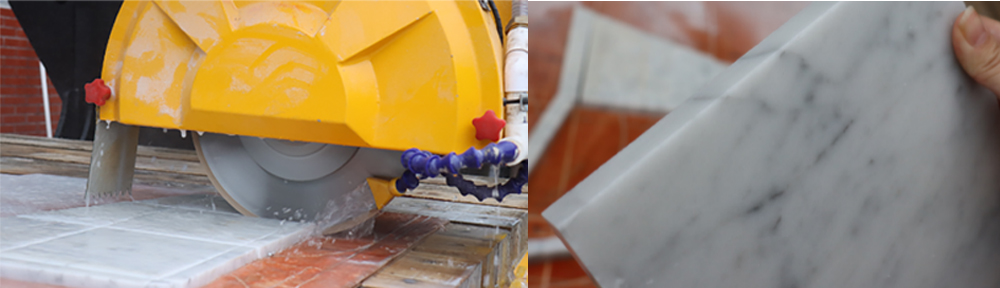

Marble

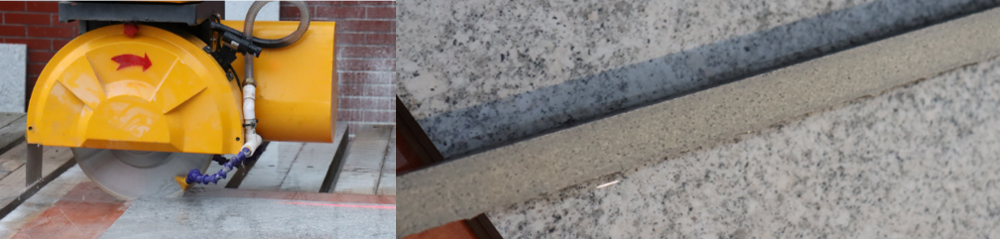

Granite


Dekton


Ceramic

With 30 years history, Wanlong has powerful engineer team of 35 high education background Engineer + 32 people sales team who sales to all over the world(3000 clients from 108 countries and regions)

With powerful sales team, we get the fresh market request, and with powerful team, Engineer can fast offer product met with new market request, to keep our tools quality at top level always.

So Wanlong has advantage as above mentioned we produce both machine and match tools, Our machinery engineer and tools engineer work together to set the Most suitable RPM for the machine, also the matched blade, which always makes our Machine and blades reached best performance, example this WLCNC500, tested as:

RPM 2400, D400,cutting hard black granite at 7m/min, normal granite 9m/min, soft granite 12m/min

Kindly please you are looking for a machine, please don't hesitate to send us also an inquiry.
