The CNC control system is equipped with two working heads, designed for engraving, drilling, lettering, and cutting various stones, such as marble, granite, quartz stone, sandstone, or artificial stones, as well as ceramics and glass. It is also suitable for the mold industry, including copper sculpting, aluminum sculpting, metal molds, plastic sheets, PVC, and more.

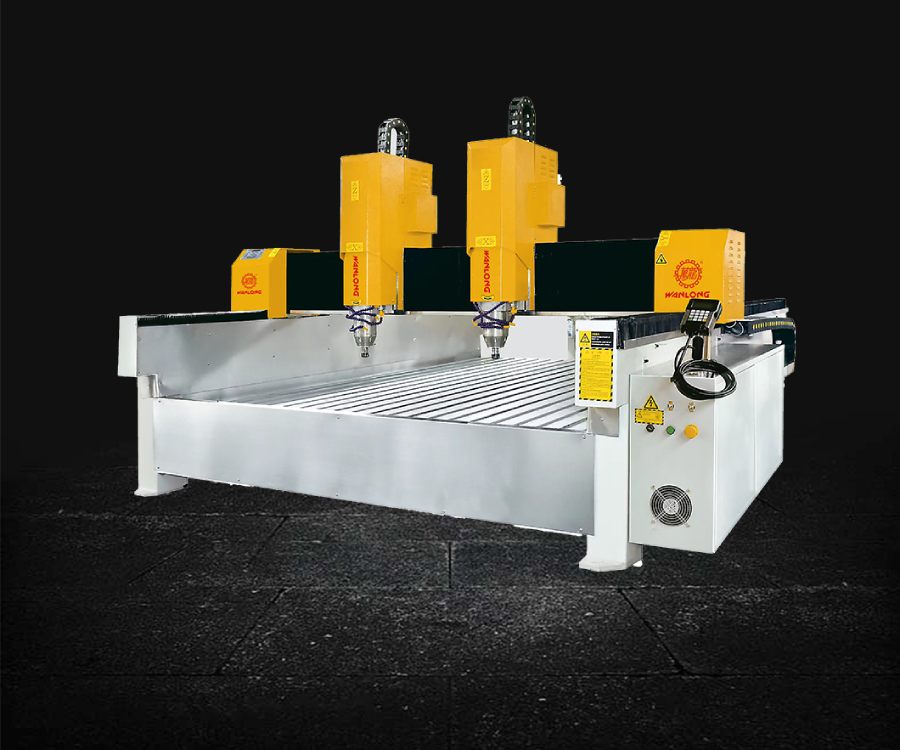

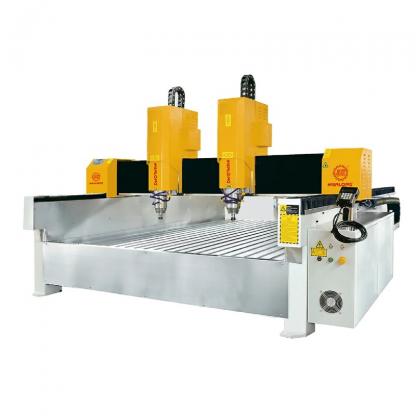

CNC Tombstone Granite Marble Stone CNC Engraving Machine:

This machine is mainly for Granite Engraving, it can make the letters and different nice pictures on stone. It’s of Hybrid Servo Motor Drive, High Precision bevel Drive, and the Screw if of  Taiwan TPI2505. It use the Mono-block structure, with special back installation, Steel structure, and the surface with electroplating treatment. It can do the Automatic Oil filling, completely elcosed Dustproof.

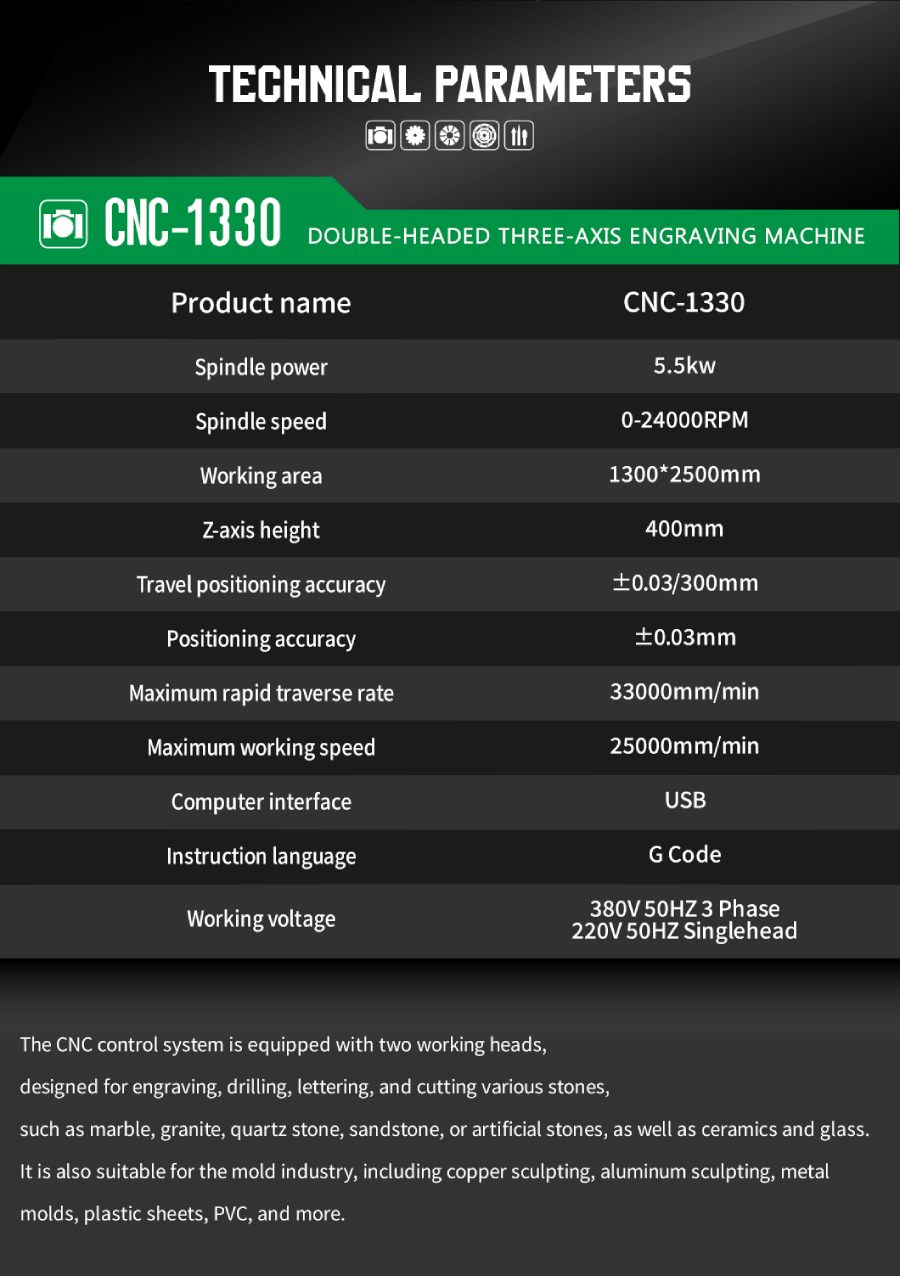

Model Unit CNC-1330
Spindle power KW 5.5
Spindle speed   0~24000RPM
Working area mm 1300*2500
Z-axis height mm 400
Travel positioning accuracy mm ±0.03/300
Positioning accuracy mm ±0.03
Maximum rapid traverse rate mm/min 33000
Maximum working speed mm/min 25000
Computer interface   USB
Instruction language   G Code
Working voltage   380V 50HZ 3 Pashe/220V 50HZ Singlehead
