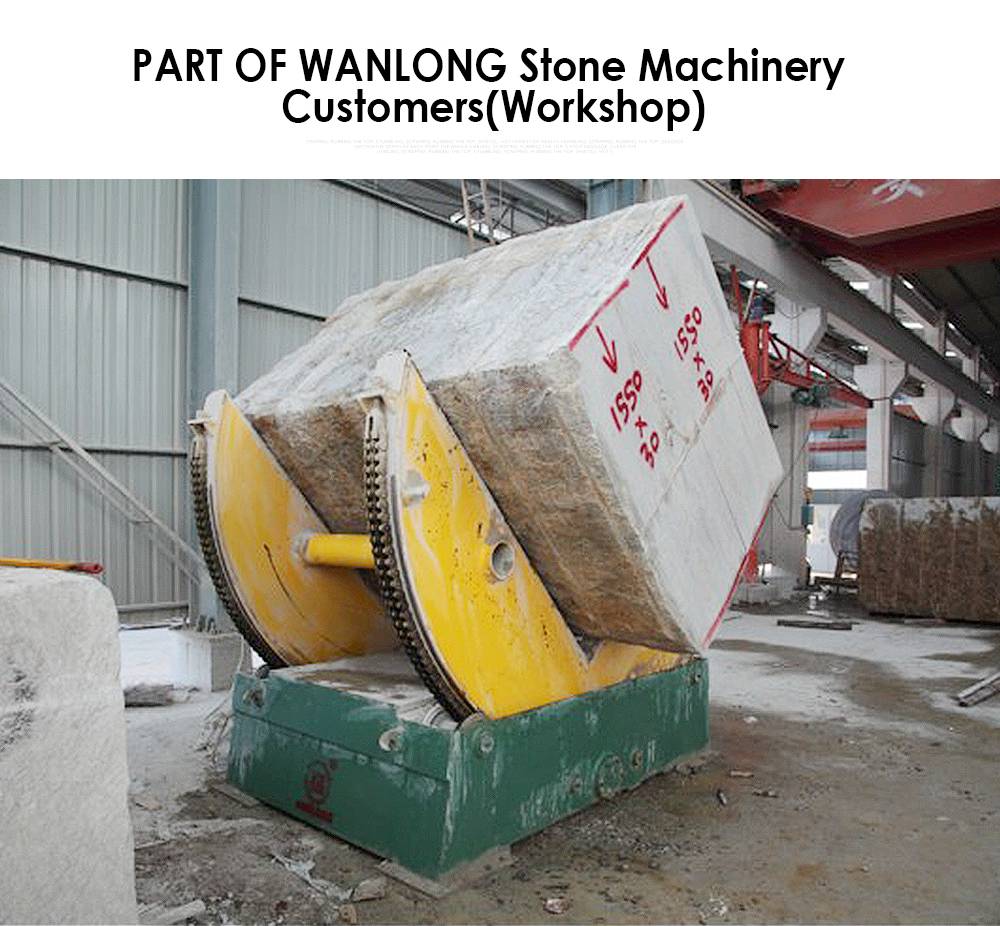

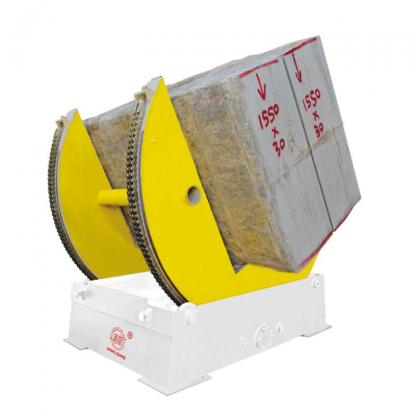

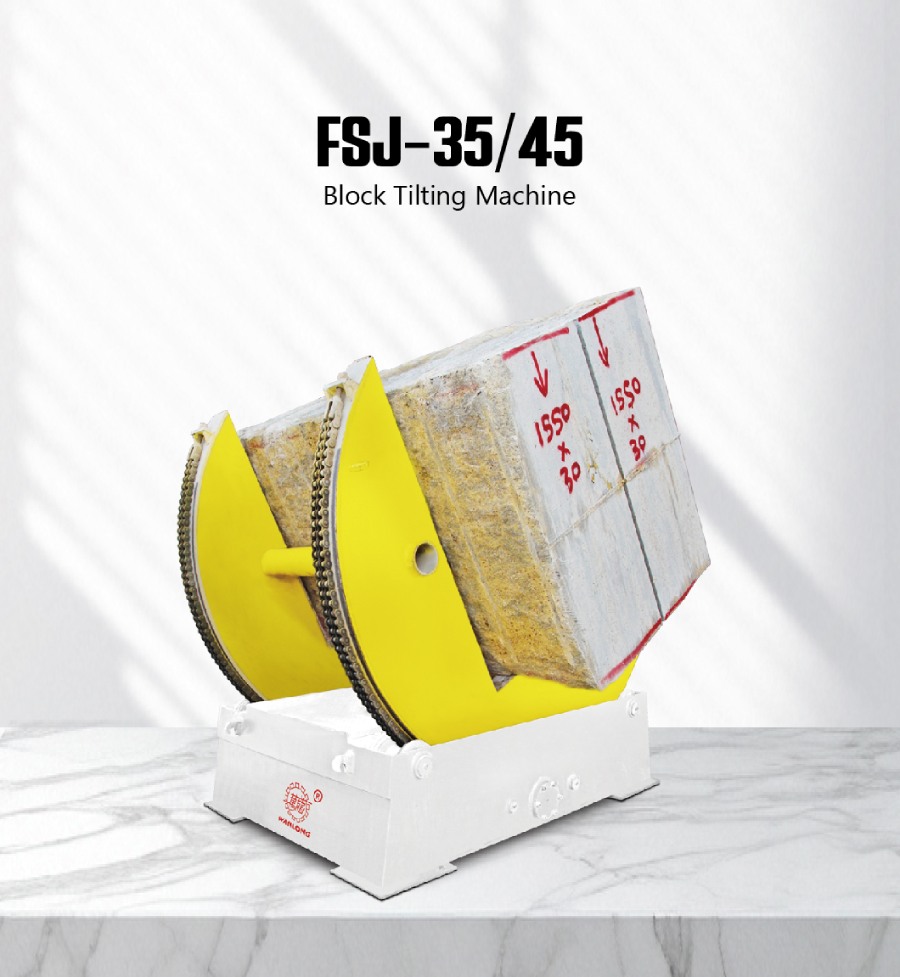

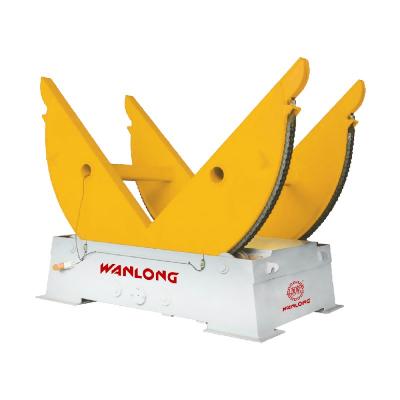

The equipment is widely used for block tilting.

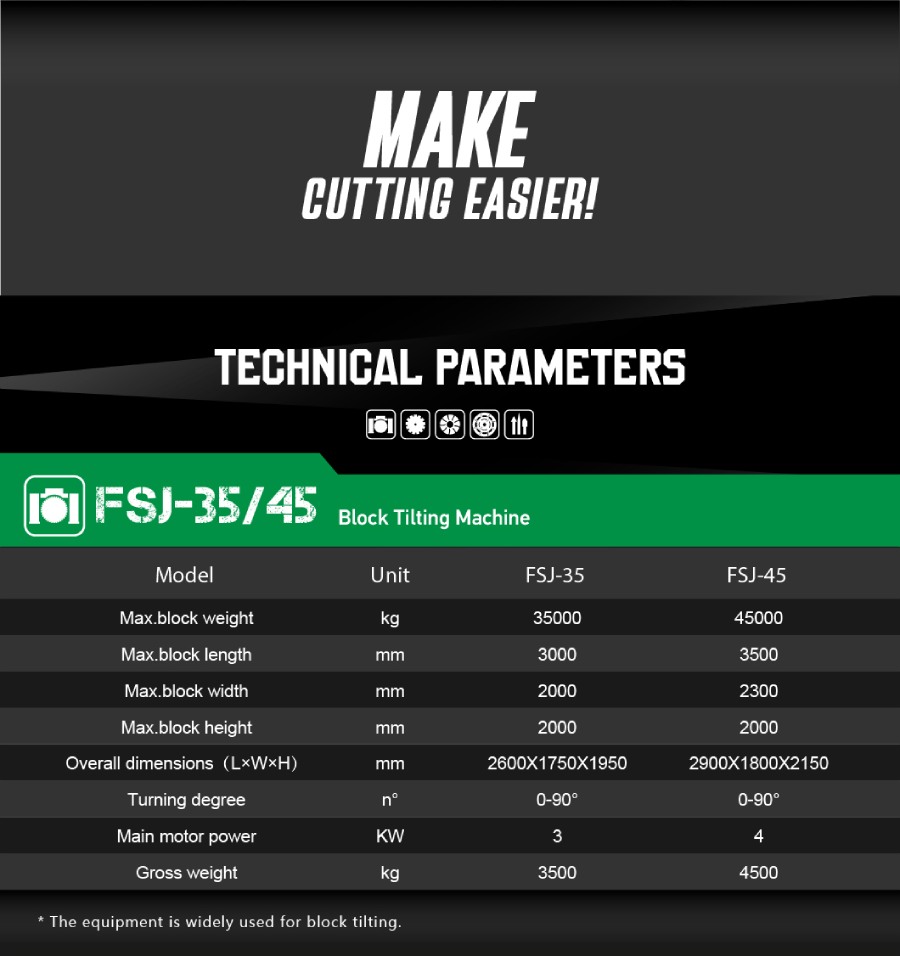

Technical Parameters
Model | Unit | FSJ-35 | FSJ-45 |
Max.block weight | kg | 35000 | 45000 |
Max.block length | mm | 3000 | 3500 |
Max.block width | mm | 2000 | 2300 |
Max.block height | mm | 2000 | 2000 |

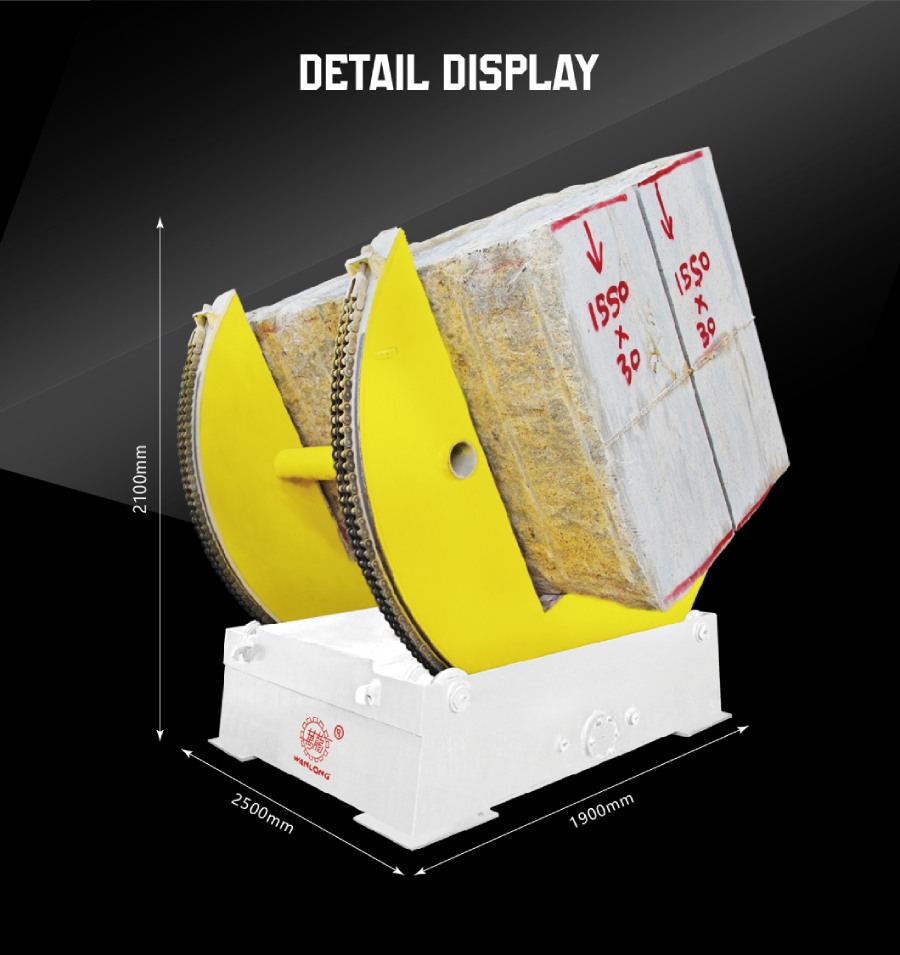

Overall dimensions(L×W×H) | mm | 2500×1900×2100 | 2600×1900×2100 |
Turning degree | n° | 0-90° | 0-90° |
Main motor power | KW | 3 | 4 |
Gross weight | kg | 3000 | 4000 |
