Product Features:

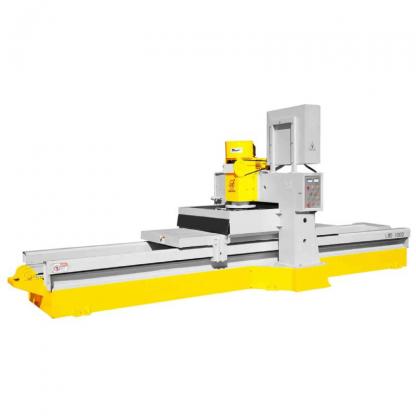

LMD-1000 gantry calibrating machine is for calibrating the slab with max Width of 1000mm by adopting the plated-jointed structure The screw rod drives trolley to feed automatically Japanese Mitsubishi frequency converters make the cutting speed adjustable.
LMD-1000 | LMD-1350 | ||
---|---|---|---|
Diameter of calibrating head | mm | 1080 | 1400 |
Vertical stroke | mm | 100 | 110 |
Speed of table | m/min | 5.8 | 5.8 |
Cutting table feed distance | mm | 2500 | 2500 |
Max. cutting (L x W x H ) | mm | 2500*1050*100 | 2500*1350*100 |
Overall dimensions (L x W x H) | mm | 6000*2000*1830 | 6010*2450*1860 |
Main motor power | KW | 18.5 | 22 |
Water consumption | m³ | 10 | 10 |
Approximate Weight | Kg | 3500 | 4000 |
