The cnc diamond wire saw cutting machine produced by Wanlong is suitable for cutting granite, marble, quartz and sandstone and other stones.

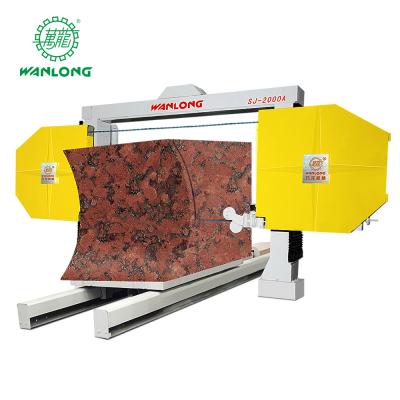

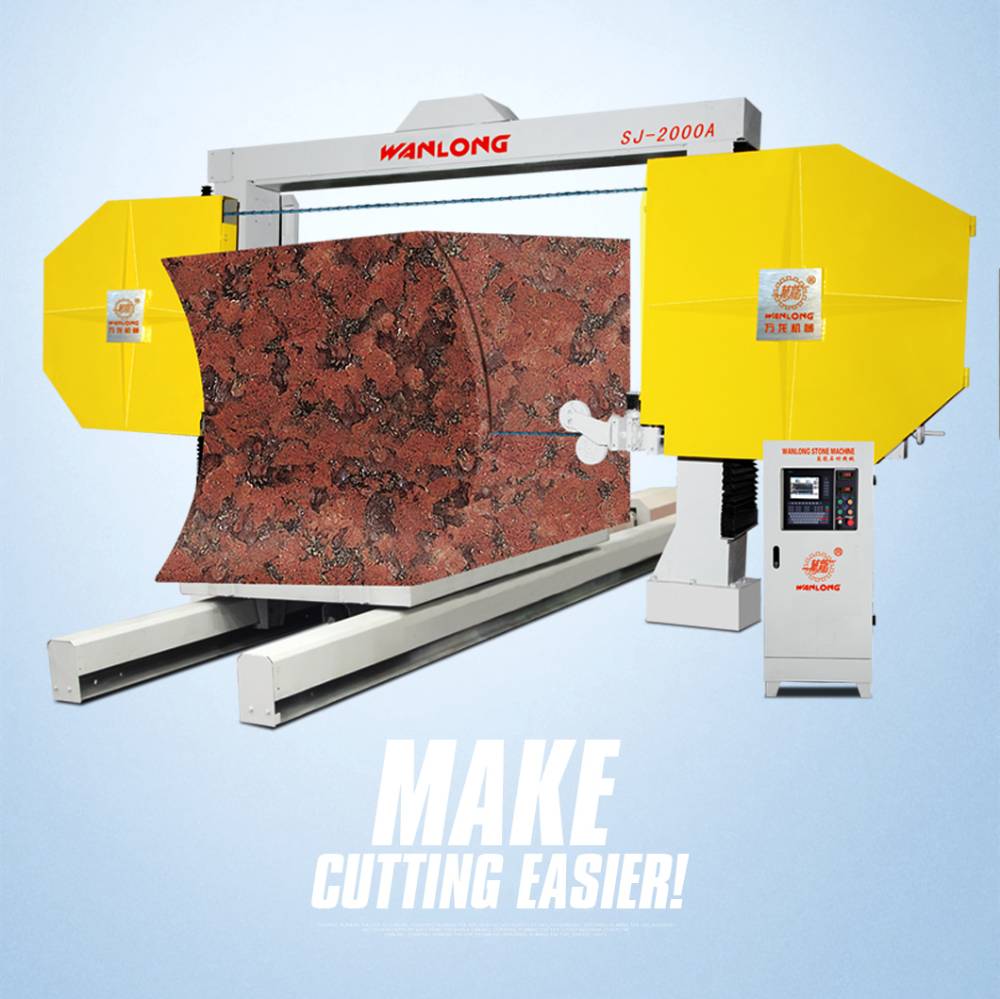

SJ-2000A Numerical Control Wire Saw:

This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably, which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible. Diverse, complex,2-dimensional surfaces can be processed. Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.


SJ-2000A CNC Diamond Wire Saw Cutting Machine: Ideal machine for diverse, complex, 2-dimensional surfaces processing, such as circular stone plates, character, roman column slab and so on.


Features:

- Independent guide rails on the columns make the flywheel move up and down smoothly

- Flywheels works stably that improves the service lifetime of the diamond wire saw

- Stable and constant stretch on the flywheels enhances the cutting accuracy

- Guide wheel adopts a four-layer sealed protection system to greatly improve machining precision

- Down feed speed is adjustable according to different cutting materials

- CNC system makes the human-machine interface easy and flexible

- Protective cover is waterproof and highly durable

- CE Certified

- 12month warranty


Configurations:

1. SIEMENS main motor with stronger seats.

2. PANASONIC PLC and inverter.

3. Strong cast iron HT200.

4. Touch sensitive Panel Easy for worker to operate.

5. Max. cutting size: 2000x2000x1500mm
