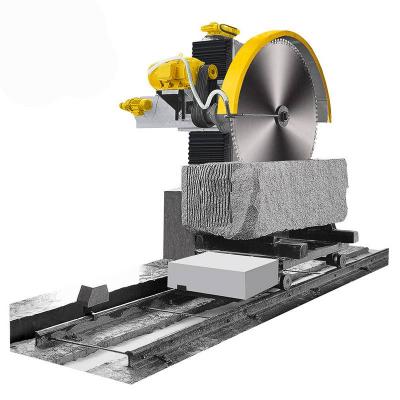

Features of the QZQ-1600/1800 Single Column Auto Cutting Machine produced by Wanlong:
This machine combines advantages of several types of stone cutting machines. Single column supporting structure, and two-stage variable speed gear for headstock to make cutting more smoothly. Its main advantages are cutting automatically according to pre-set cutting depth and slicing thickness, low energy comsuption, high cutting efficiency, easy operation and maintenance.
QZQ-1600/1800 integrates many advantages and is a very popular stone cutting machine in the market, which is favored by stone manufacturers.
Types of relevant segments applicable to QZQ-1600/1800
Model | Unit | QZQ-1600 | QZQ-1800 |
Max. diameter of blade | mm | Φ1600 | Φ1800 |
Max. No. of blades | PCS | 2 | 1 |
Recommended blade combination | mm | Φ1600+Φ940 | Φ1800 |
Main motor power | KW | 22 | 22 |
General power | kw | 25.15 | 25.15 |
Max processing sizes | mm | 3000*1200*650 | 3000*1200*750 |
Max lifting stroke | mm | 900 | 900 |

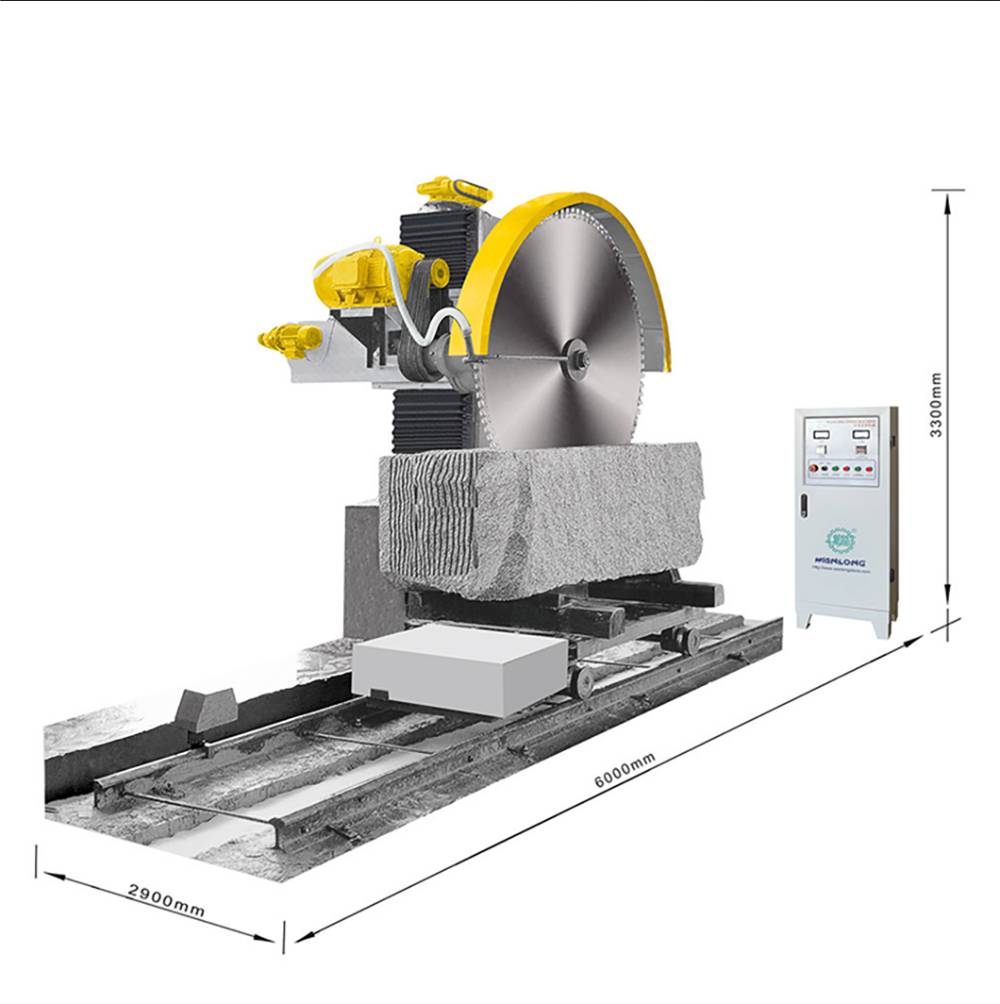

Overall dimensions(L*W*H) | mm | 6000*2900*3300 | 6000*2900*3300 |
Water consumption | m3/h | 6 | 6 |
Total weight | kg | 3000 | 3000 |
Types of relevant segments applicable to QZQ-1600/1800
Steel core (mm) |
Segment size
(mm)
|
Steel core (mm) |
Segment size
(mm)
|
Steel core (mm) |
Segment size
(mm)
|
5.5 | 24×7.4/6.6×15 | 6.5 | 24×8.4/7.6×15 | 7.2 | 24×9.2/8.4×15 |
