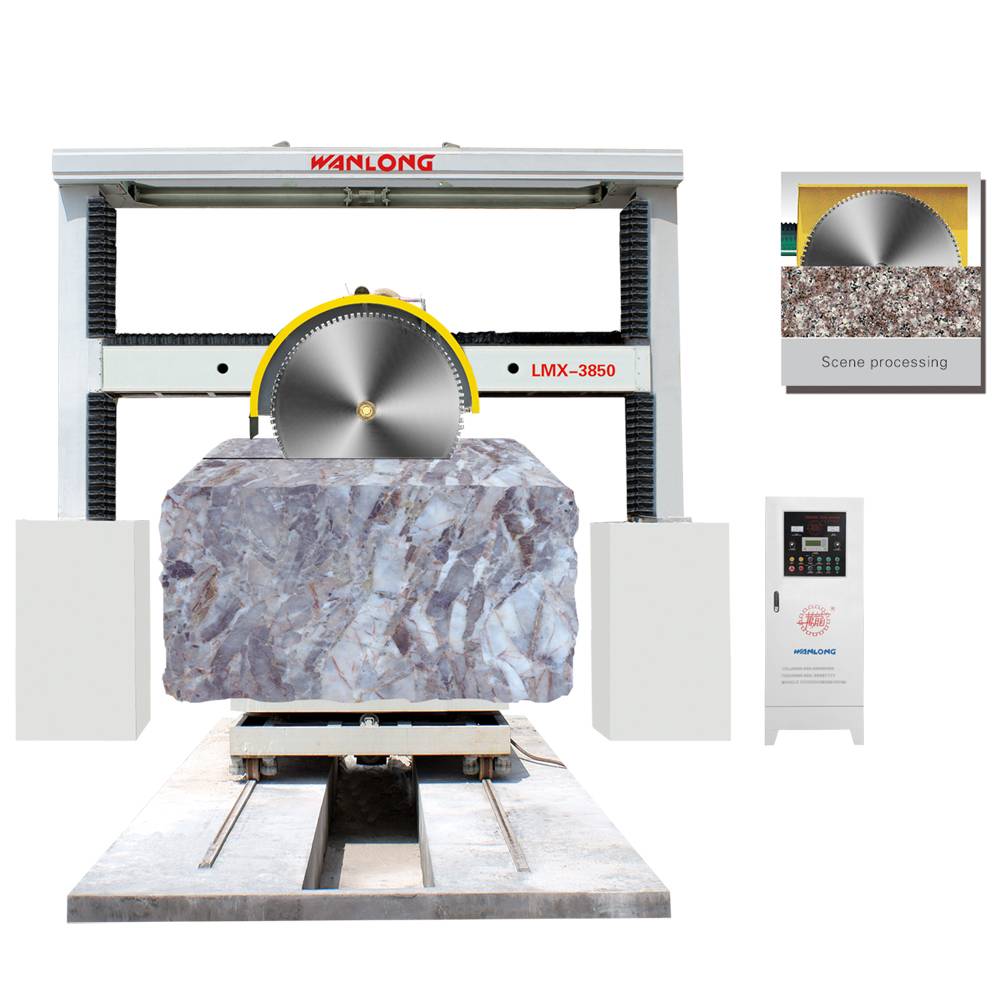

LMX-3850/4850 Block Squaring Cutter: Gantry Stone Block Trimming Dressing Squaring Cutter Machine
This machine is specially designed for block squaring. With wide-span gantry structure, it is suitable for large block processing.
| Model | Unit | LMX-3850 | LMX-4850 |
|---|---|---|---|
| Blade diameter | mm | 1200-1600 | 1200-1600 |
| Main motor power | KW | 30 | 30 |
| Table dimensions(L x W) | mm | 2000*2000 | 2000*2000 |
| Table rotating degree | n° | 0-360° | 0-360° |
| Max. cutting size(L x W x H) | mm | 3000*3000*2000 | 3800*4000*2000 |
| Overall dimensions(L x W x H) | mm | 6700*6000*5500 | 7500*6000*5500 |
| Water consumption | m3/h | 6 | 6 |
| Approximate weight | Kg | 10000 | 10500 |
