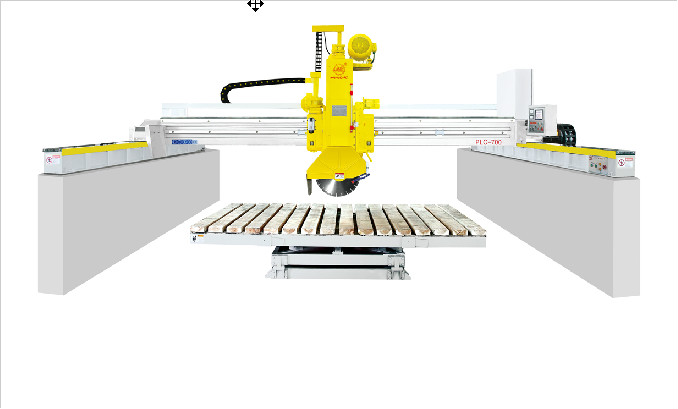

PLC-700 Laser Bridge Cutting Machine

Previous: PLC-600/800 Laser Bridge Cutting Machine
Next: YTQQ-600 Mono-block Bridge Cutting Machine

PRODUCT FEATURES：

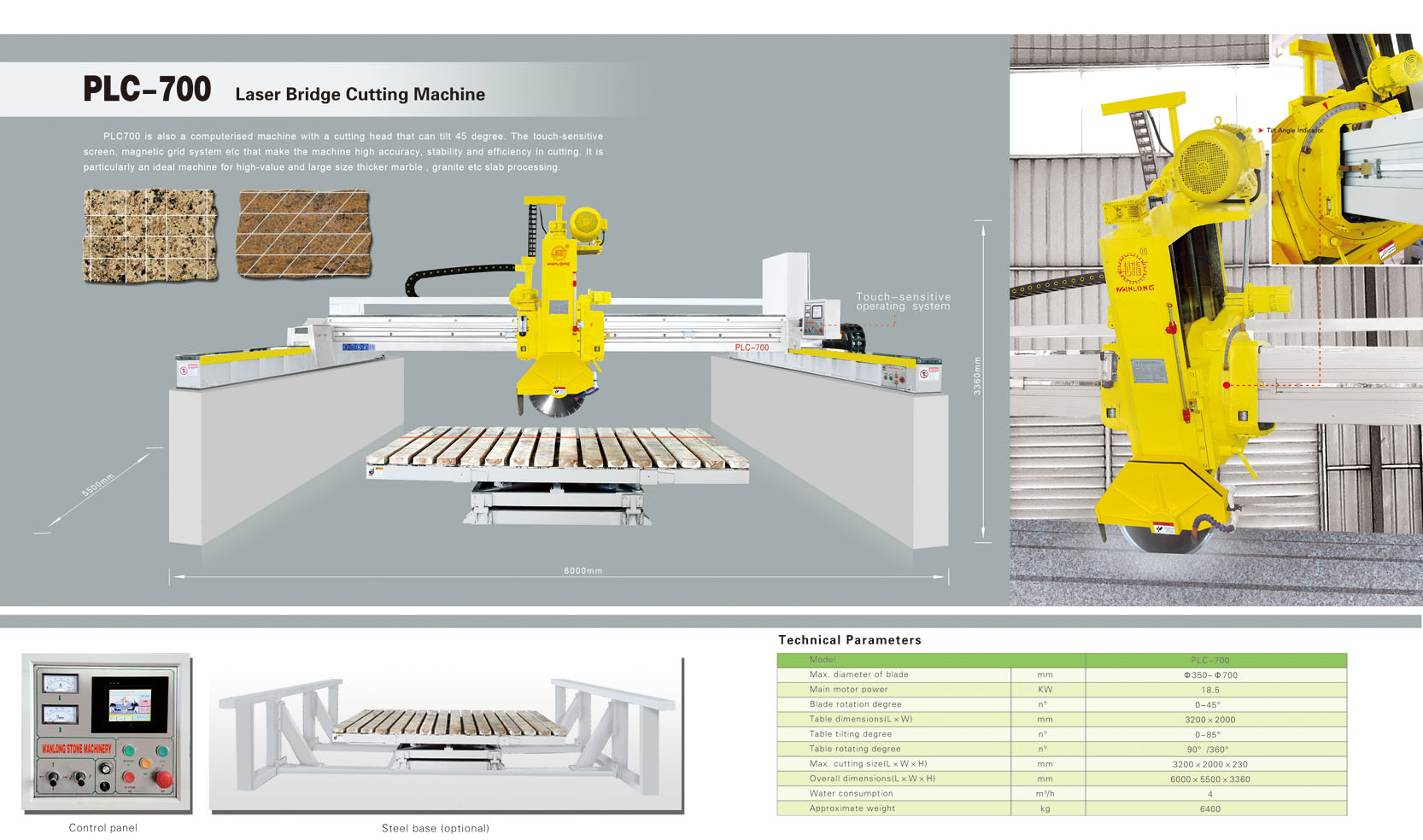

PLC-700 is also a computerised machine with a cutting head that can tilt 45 degree The touch-sensitive screen, magnetic grid system etc that make the machine high accuracy, stability and efficiency in cutting, It is particularly an ideal machine for high-value and large size thicker marble , granite etc slab processing

PLC-700 is also a computerised machine with a cutting head that can tilt 45 degree. The touch-sensitive screen, magnetic grid system etc that make the machine high accuracy, stability and efficiency in cutting. It is particularly an ideal machine for high-value and large size thicker marble, granite etc slab processing.

Model	Unit	PLC-700
Max. diameter of blade	mm	700
Main motor power	KW	18.5
Blade rotation degree	n°	0-45°
Table dimensions(L x W)	mm	3200*2000
Table tilting degree	n°	0°-85°
Table rotating degree	n°	90°-360°
Max. cutting size(L x W x H)	mm	32002000230
Overall dimensions(L x W x H)	mm	600055003360
Water consumption	m³/h	4
Approximate weight	Kg	6400
