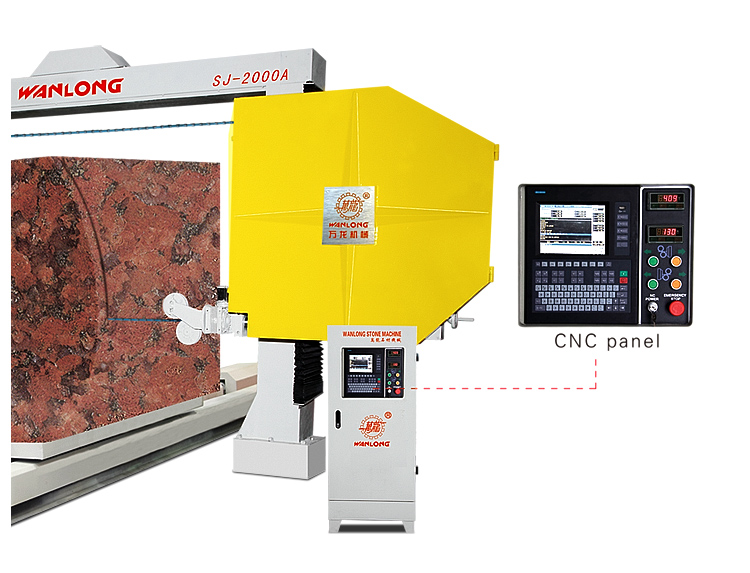

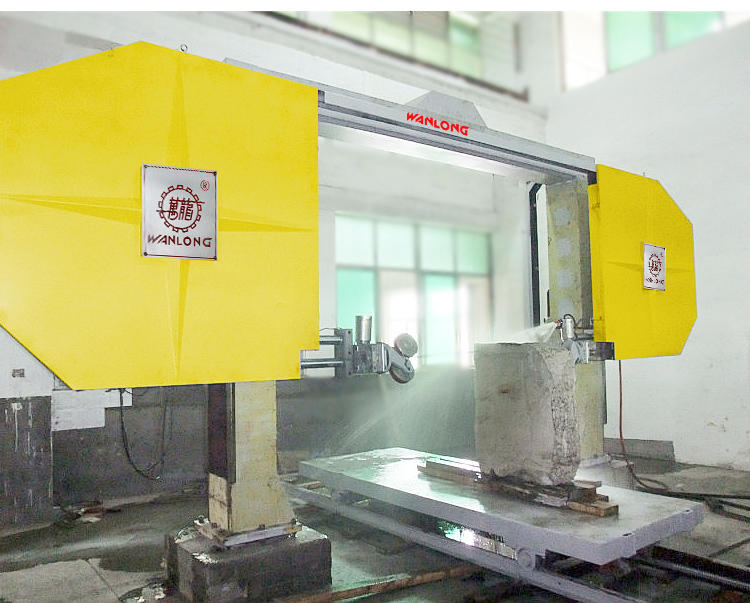

This machine has an independent guide rail on each of the four columns. The flywheel elevates and lowers along these guide rails. The flywheel works stably, which improves the service life of the diamond wire saw. Flywheel tension has a stable, constant stretch mode to enhance cutting accuracy. CNC system makes the man-machine interface easy and flexible. Diverse, complex, 2-dimensional surfaces can be processed Guide wheel uses a four-layer sealed protection system to greatly improve cutting accuracy. The linear cutting speed can be adjusted according to different cutting requirements. The protective cover is waterproof and highly durable.

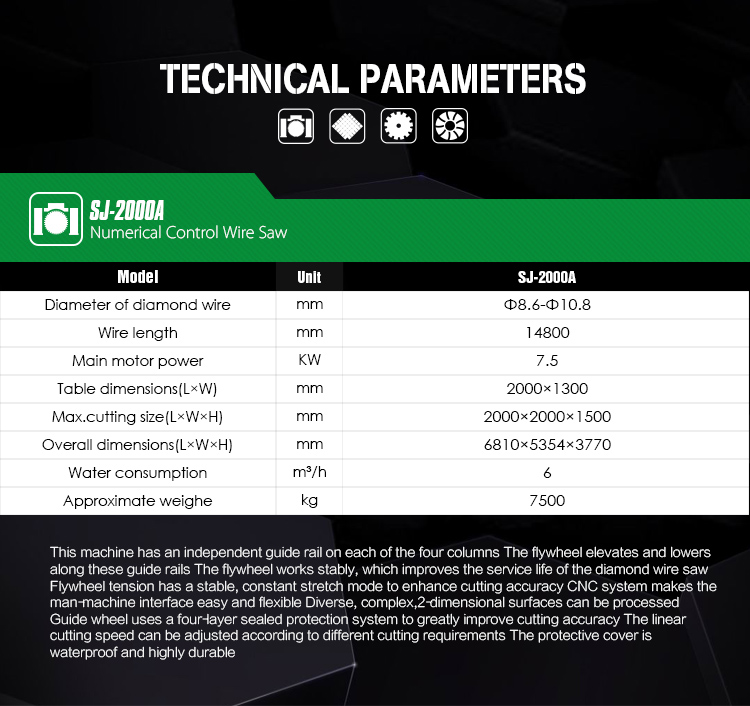

| Model | Unit | SJ-2000A | SJ-2000A | SJ-2000A |
|---|---|---|---|---|
| Wire diameter | mm | 7.2-11 | 7.2-11 | 7.2-11 |
| Main motor power | Kw | 11 | 11 | 11 |
| Max. Cutting Size | mm | 2000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
| Table dimensions | mm | 2000*1300 | 2500*1300 | 2500*1300 |
| Rotation table | / | Optional | Optional | Optional |
| Linear Speed | m/s | 20-40 | 20-40 | 20-40 |
| Overall dimensions | mm | 6810*5354*3770 | 7800*6300*4000 | 8800*6300*4000 |
| AWater consumption | m³/h | 4 | 4 | 4 |
| Approximate weight | Kg | 6500 | 7500 | 8500 |
*The special wire saw machine can be customized according to customers requests
