The United States is one of the largest stone consumers in the world. Although there are abundant mine resources in the country, 80% of them are imported because the development is relatively limited. At present, there are about 150 mining companies and about 200-250 mining farms, mainly located in Texas, Wisconsin, Indiana, Georgia and Arizona, so most of? stone processing factories are also entrenched around here. They mainly import the large slabs, engineered stone and countertops for finishing ,that is one of the reason why most of the factories prefer the five-axis cutting? machine . Since most of the USA factory are small one ,so they prefer one machine which can cutting ,drilling ,profiling ect to satisfy most of the requirement they need during stone processing , the most important , the 5-axis is not only multifunctional , but also more modern and higher in precision.? Best one with highest quality is always the must for USA market .So here we would like to share more detailed information about our 5 Axis cutting machine which is very popular in USA market ?with you as below



Main Function

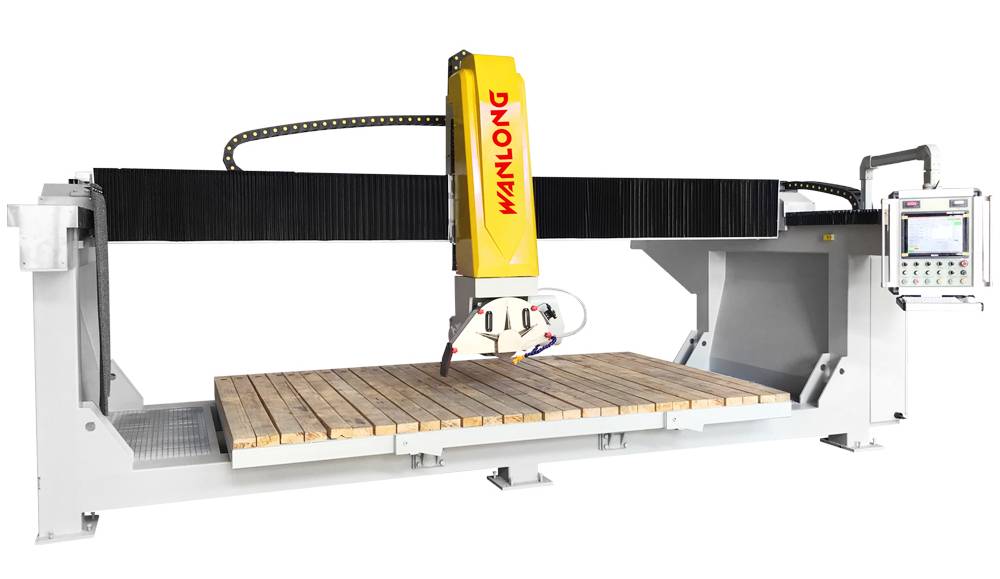

Controlled by industrial computer, with RTCP function, which realized 5 Axis 5 linkage, our 5 Axis laser bridge saw machine has powerful function as:

● Self-contained common cutting shapes choice

● Camera location

● Vacuum sucker moving slabs

● Thickness measurement

● Auto Blade adjusting function

● Chamfering of any edges

● Chamfering in length and breadth

● DXF upload

● Excel editing and typesetting

● Countertop processing

● Profiling available for all kinds as: Line profiling ,Arc profiling, wave profiling, column profiling, trapezoid profiling, groove profiling, arc wave profiling, trapezoid wave profiling

● All kinds of shapes as: Circle, ellipse, Trapezoid, irregular shape countertop, polygon, parallelogram, Fanshaped, triangle …etc.

1. Configuration

1.1 Servo motor +high precision Reducer for XYZAC

---Qinchuan brand Precision robot reducer For A & C Axis

---TECHMECH Precision helical gear planetary reducer for X&Y& Z Axis.

---Double drive for Y axis to make sure high precision and stability.

1.2 HIWIN Ball screw for Z lifting(up and down)

1.3 HIWIN linear slide rail for XYZ moving.

1.4 All pneumatic parts from Airtac brand

1.5 Crossbeam,longern and machine base foundation are made of high strength and high stiffness Q345 material rectangular steel tube stiffened panels, The stiffness and stability of the equipment are ensured by finite element analysis.

1.6 Specially-made variable frequency spindle motor(for stone)

1.7 All above Configurations ensure the high operation accuracy, high reliability, high stability and long life of  this 5Axis laser bridge saw.




Main technical Parameter
Item Item name Unit Parameter Remark
1 Overall dimensions(L*W*H) mm 5650X3510X3257
2 Loading dimensions(L*W*H) mm 5650X2250X2250
3 Total weight KG 3838
4 Main spindle power KW 15
5 Spindle motor RPM r/min 6000 variable frequency
6 Max blade size mm 500
7 Max engraving bits size mm 16
8 Worktable size mm 3200X2000
9 Linear stroke（X-Y-Z） mm 3400-2460-330
10 Rotation angle（A-C） ° 90-360
11 Rated linear speed（X-Y-Z） m/min 30-30-5
12 Rated rpm（A-C） °/min 360
13 NO. of vacuum sucker n 6
14 Max loading of Vacuum sucker KG 400
15 Air pressure MPa 0.7
16 Water Consumption L/min 30

2. Main Advantages

2.1 Our 5 Axis laser bridge saw has Same function as Ialiano model, which has been commercial use maturely, and easy operation is 2.2 very friendly for worker users.

2.3 Fast and high quality after salse service with lifelong free technology support.

2.4 Price Advantages, Wanlong would like to give up some part of profit by quoting only 25%-50% price compared with same function machine from Italian.

2.5 All important components like Reducer,ball screw, linear slide rail, Vacuum component, are used internation famouse brand with quality guarantee.

2.6 In view of the defects of vacuum generator and vacuum switch with many faults and short service life in the current market, a special design is carried out to effectively extend its service life.

2.7 The stiffness, vibration, noise and inertia are analyzed by finite element method. The structure is reasonable, Y axis adopts double drive form, the whole machine can be high-speed, smooth, accurate operation.
